CPU：Quad Core ARM Cortex A53
GPU：Mali-G31 OPenGL ES3.2
Memory：2GB
Flash：8GB/16GB
WiFi：IEEE 802.11 b/g/n/ac/ax
Bluetooth：It supports Bluetooth remote control and Cannot transfer files
1*HD：support up to 4K
2*USB：2*USB2.0
1*DC：5V/2A
1*AV：audio out
LAN：Ethernet Interface:standard RJ-45
1*TF CARD：Support 4GB/8GB/16GB/32GB/64GB

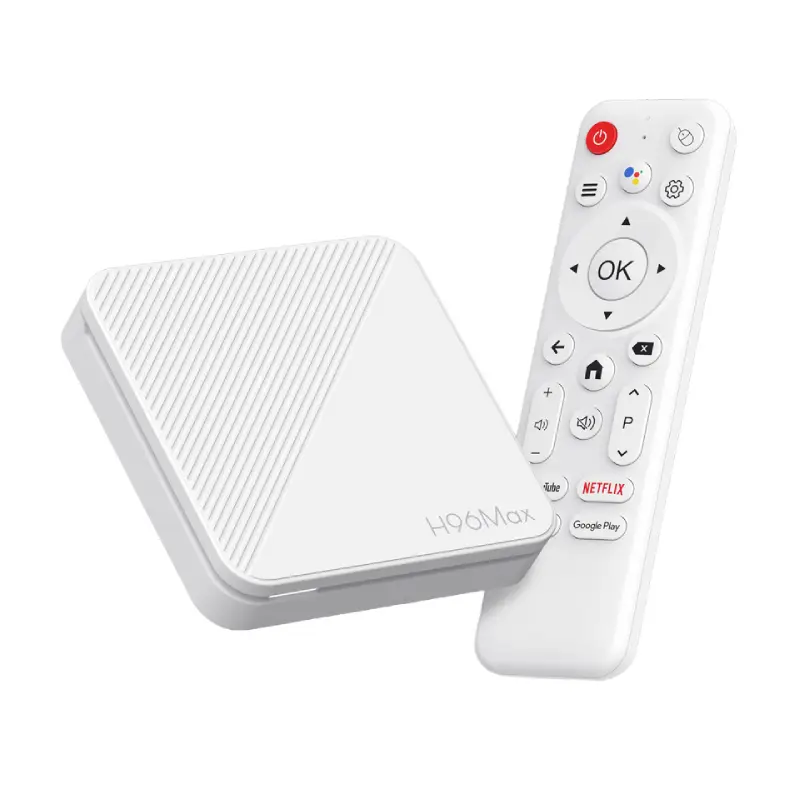

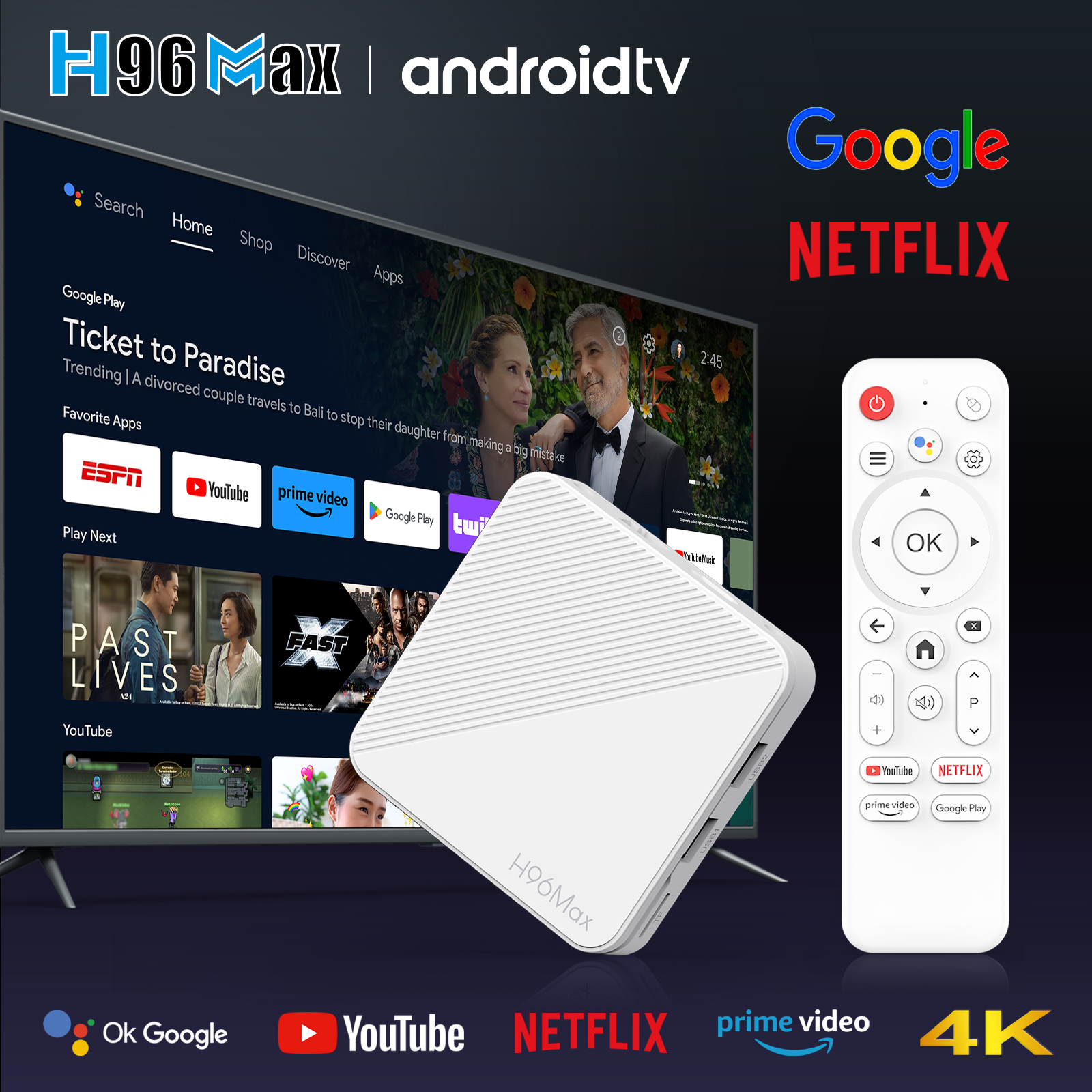

H96 Max H313 Android TV Box | Android 14, 4K UHD, Voice
Remote, OEM Ready
The H96 Max H313 Android TV Box is powered by the efficient Allwinner H313 chipset and runs
on the latest Android 14 operating system. Designed for smooth 4K UHD playback and stable
wireless connections, it features WiFi 6 and Bluetooth 5.4 for enhanced streaming and device
pairing. With support for voice remote control, TF card expansion, and multiple ports, this Android
TV box is built to meet the core demands of IPTV resellers, hospitality integrators, and OEM clients.
Whether you require custom logo branding, UI design, or packaging solutions, the H96 Max H313
Android TV Box is the smart choice for scalable and cost-effective deployments.
🛒 Why Choose H96 Max H313 Android TV Box?
The H96 Max H313 Android TV Box strikes the perfect balance between affordability and
functionality. It’s a reliable choice for IPTV and OTT media providers looking for Android 14
performance, voice control, and rich customization—all in one compact package. Designed with
integrators and resellers in mind, this TV box is ready to scale with your business needs.
✅ Key Features:
Android 14 Operating System
Allwinner H313 Quad-Core ARM Cortex-A53 CPU
4K UHD Video Decoding @ 60fps
WiFi 6 + Bluetooth 5.4
2GB DDR3 RAM + 8GB/16GB eMMC Storage
Supports Voice Remote Control
Dual USB 2.0, TF Card Slot, HDMI, LAN (100M)
Custom Logo, UI, and Packaging for OEM/ODM Projects
📌 Looking for higher specs? Explore the H96 Max H618 PLUS Android TV Box for up to 8K
performance.
📦 Technical Specifications:
Specification | Details |
CPU | Allwinner H313 Quad-Core ARM Cortex-A53 |
GPU | Mali-G31 OPenGL ES3.2 |
RAM / ROM | 2GB DDR3 / 8GB or 16GB eMMC |
Operating System | Android 14 |
Video Output | HDMI 2.0, 4K @ 60fps |
Connectivity | WiFi 6, BT 5.4 |
Ports | HDMI, 2×USB 2.0, TF Slot, LAN (100M) |
Power Supply | DC 5V/2A |
Certifications | CE, FCC, RoHS |
🔧 OEM/ODM Customization:
We offer full OEM/ODM services to meet your business branding needs. From hardware to software,
everything is tailored for your market:
Custom logo printing and device branding
Personalized UI interface and boot animation
Custom retail packaging and color box design
Pre-installed apps and IPTV configurations
Multi-language firmware support
🔗 Want to add your logo? Visit our Can I print my own logo on your product? page for
customization options.
🎯 Application Scenarios:
IPTV Set-Top Boxes
Home Entertainment Systems
Hotel & Hospitality TV Solutions
Android-based Digital Signage Players
eLearning and OTT Media Delivery
❓ Frequently Asked Questions:
Q1: Does this model support voice control?
Yes, the H96 Max H313 Android TV Box is compatible with voice-enabled remote controllers for
enhanced navigation.
Q2: Can I order a sample before making a bulk purchase?
Definitely. We welcome sample orders with fast OEM response. See our Sample Request Policy for
more.
Q3: What’s the difference between this model and higher-end boxes?
The H96 Max H313 is optimized for 4K media delivery and budget-friendly solutions, while models
like the H96 Max M9S offer 8K and expanded RAM/ROM options.
Q4: Do you provide after-sales technical support?
Yes, we provide lifetime firmware updates and professional technical assistance for all OEM clients.
Ready to take your business to the next level?
Contact us now for wholesale pricing, OEM/ODM support, and fast sample delivery.
Let’s build your custom Android TV Box solution together.
| System | ||||||||||
| CPU | Quad Core ARM Cortex A53 | |||||||||
| GPU | Mali-G31 OPenGL ES3.2 | |||||||||
| Memory | 2GB | |||||||||
| Flash | 8GB/16GB | |||||||||
| WiFi | IEEE 802.11 b/g/n/ac/ax | |||||||||
| Bluetooth | It supports Bluetooth remote control and Cannot transfer files | |||||||||
| I/O | 1*HD | support up to 4K | ||||||||
| 2*USB | 2*USB2.0 | |||||||||
| 1*DC | 5V/2A | |||||||||
| 1*AV | audio out | |||||||||
| LAN | Ethernet Interface:standard RJ-45 | |||||||||
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |||||||||
| Software | ||||||||||
| OS | Android 14.0 | |||||||||
| Video | ·Video Decoder Supports video decoding up to 4K@60fps Supports multi-formats: H.265 [email protected] up to 4K@60fps VP9 Profile 2 up to 4K@30fps AVS2 JiZhun 10bit Profile up to 4K@30fps H.264 BP/MP/[email protected] up to 4K@30fps H.263 BP up to 1080p@60fps ·Video Encoder H.264 BP/MP/HP H.264 supports l/P frame, and only supports single reference frame MJPEG/JPEG baseline Maximum 16-megapixel(4096 x4096) resolution for H.264 encoding H.264 encoding capability: 1080p@60fps ·JPEG decoder Supports IPEG encoding with the performance of 1080p@60fps Supports configurable picture resolutions Supports configurable quantization tables for the Y component, Cb component and Cr component respectivelv Supports OSD front-end overlapping Supports the color-to-gray function ·HD Compatible with HDCP 2.2 and HDCP 1.4 Supports DDc and SCDc Integrated CEC hardware engine Video support: 2D Video:4K/1080P/10801/720P/576P/480P/5761/480l, up to 4K@60fps 3D Video: 4K/1080P/720P/576P/480P,up to 4K@30fps Supports RGB/YUV444/YUV422/YUV420 output Color depth: 8/10-bit HDR10: compliant with CTA-861.3 and SMPTE ST 2048 | |||||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC | |||||||||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||||
| Language | Multi-Language | |||||||||
| Appliactions | ||||||||||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |||||||||
| Apps | Apps download freely form android market、amazon app store etc. | |||||||||
| Medium | Local Media playback,Support HDD, U Disck | |||||||||
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |||||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard | |||||||||
| Packing | ||||||||||

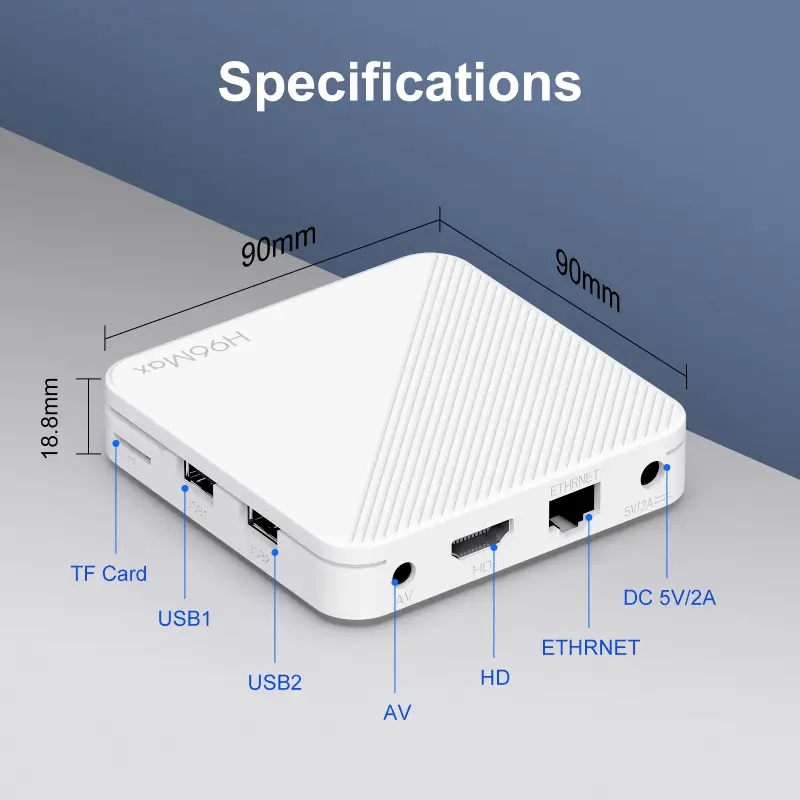

| Product dimension (WxHxL): W90mm*H18.8mm*L90mm | ||||||||||
| Unit products (G.W.): 92.2g | ||||||||||
| Unit packing(WxHxL): W47.3mm*H169mm*L134.7mm | ||||||||||
| Unit packing (G.W.): 269.4g | ||||||||||
| Export carton (WxHxL): W292.5mm*H287mm*L350mm | ||||||||||
| Export carton (G.W.): 6kg | ||||||||||
| Qty per export carton: 20 | ||||||||||

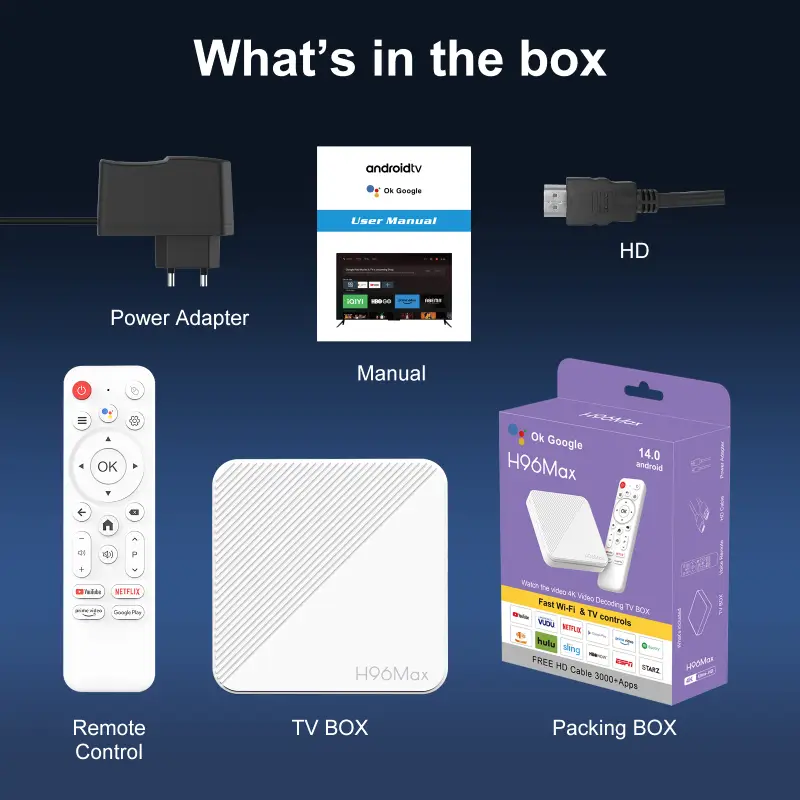

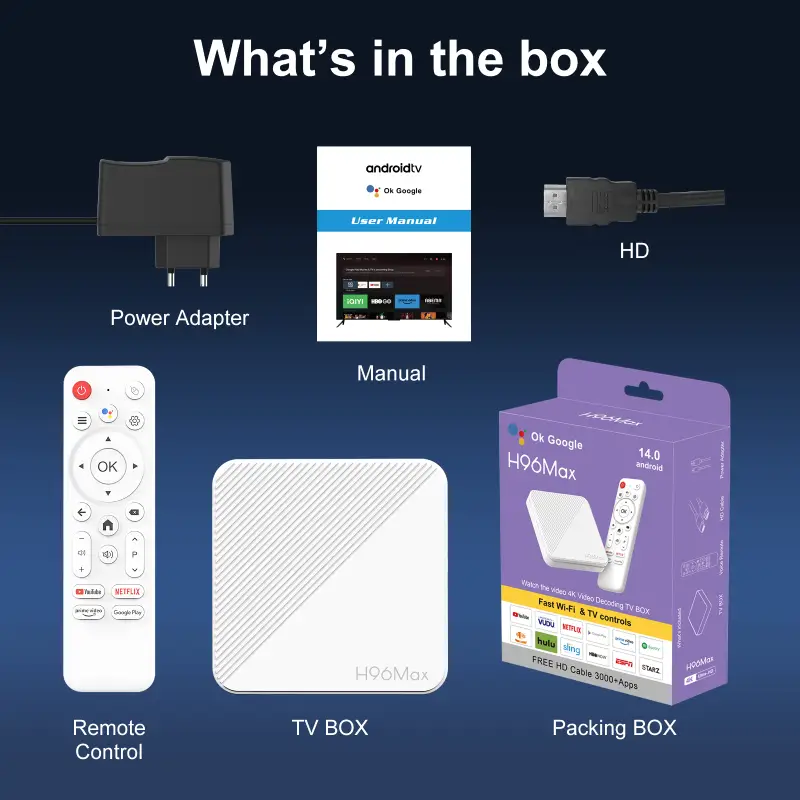

| Accessories | ||||||||||
| HD cable *1 | Remote *1 | User Manual *1 | Package box *1 | Power adapter *1 | ||||||
