GPU:Mali G31 MP2
RAM:2GB/4GB
ROM:16GB/32GB/128GB
OS:Android 14.0
WiFi:WLAN 802.11a/b/g/n/ax(WiFi6)
HD:2.0a,4K*2K UHD Output
USB:2*USB 2.0
Bluetooth:BT 5.4
DC:5V/2A
AV:480i/576i for CVBS
Ethernet:1*100M
Audio:MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE
Image:HD JPEG/BMP/GIF/PNG/TIFF
Language:Multi-Language
Apps:Apps download freely form Google Play、Apkpure store etc.

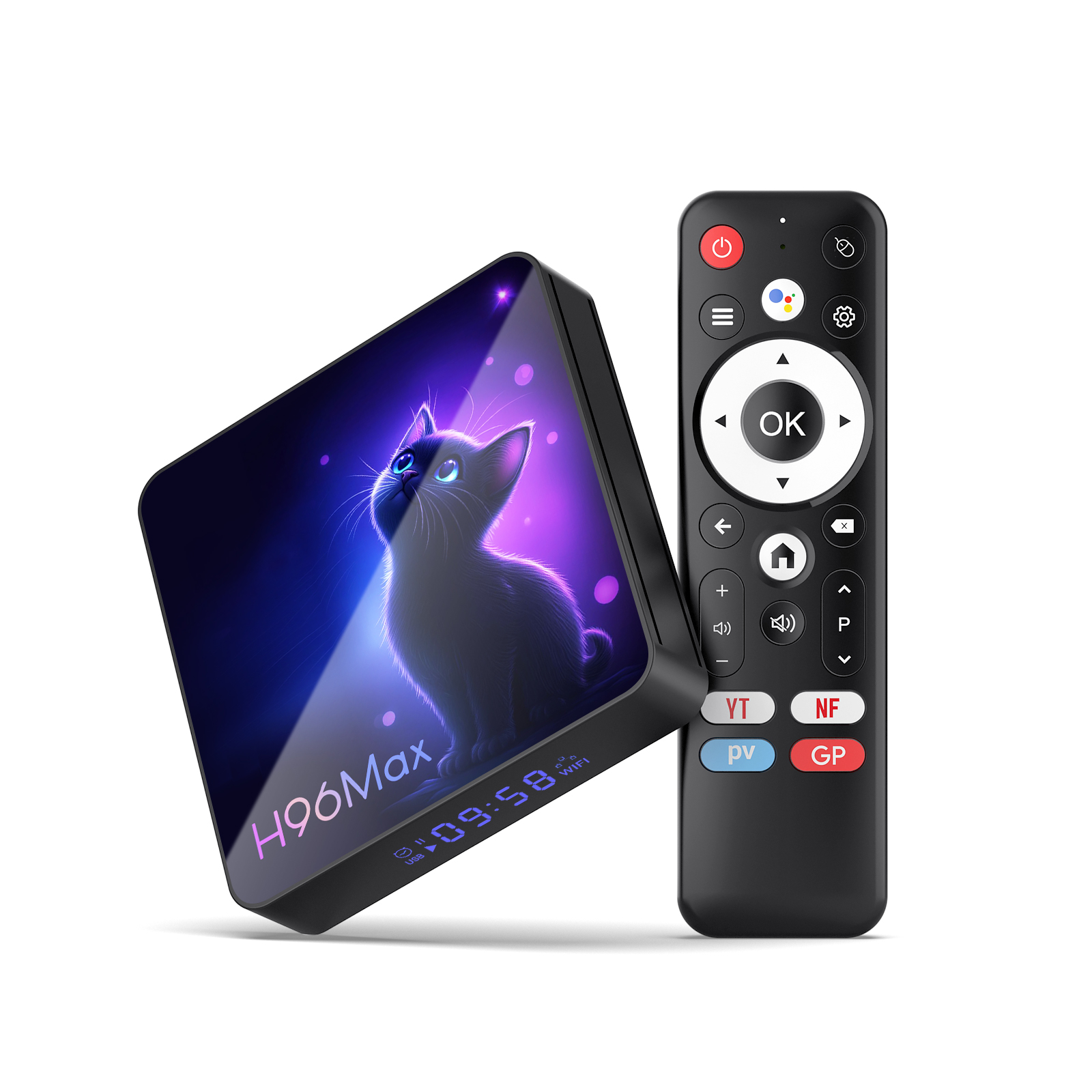

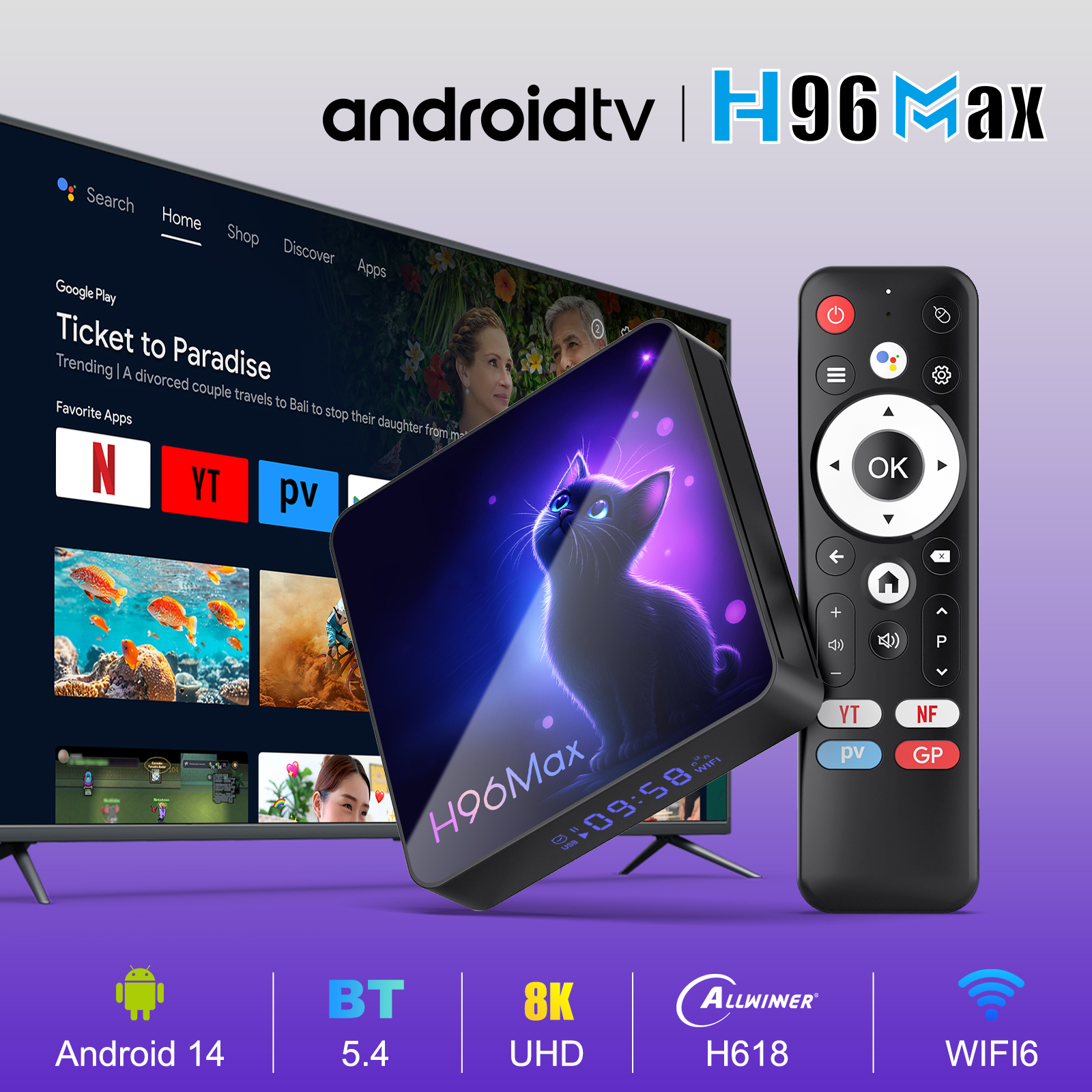

The H96 Max H618 PLUS 8K Android Streaming Box is a powerful Android device designed to
redefine home entertainment and professional streaming solutions. Featuring the robust Allwinner
H618 quad-core ARM Cortex-A53 chipset and the latest Android 14 operating system, this media
box offers outstanding performance, smooth 8K UHD playback, and reliable connectivity. With WiFi
6 and Bluetooth 5.4, it ensures stable wireless connections and quick device pairing, making it the
perfect choice for IPTV providers, OTT services, and OEM/ODM clients seeking customizable
solutions.
The H96 Max H618 PLUS 8K Android Streaming Box is more than just a typical Android TV box. It is
engineered for businesses and end users who demand superior video quality and professional
customization options. Supporting 8K UHD decoding at 24fps, it delivers breathtaking visual clarity,
while Android 14 ensures compatibility with the latest applications and security features.
For IPTV distributors, the device offers seamless integration into media ecosystems. For hospitality
providers, it delivers reliable entertainment experiences. For OEM clients, it provides full flexibility to
customize hardware, software, and packaging. This streaming box is built for scalability and tailored
business growth.
• Android 14 Operating System for smoother interface and app compatibility
• Allwinner H618 Quad-Core ARM Cortex-A53 Processor
• 8K UHD Video Decoding @ 24fps for premium streaming

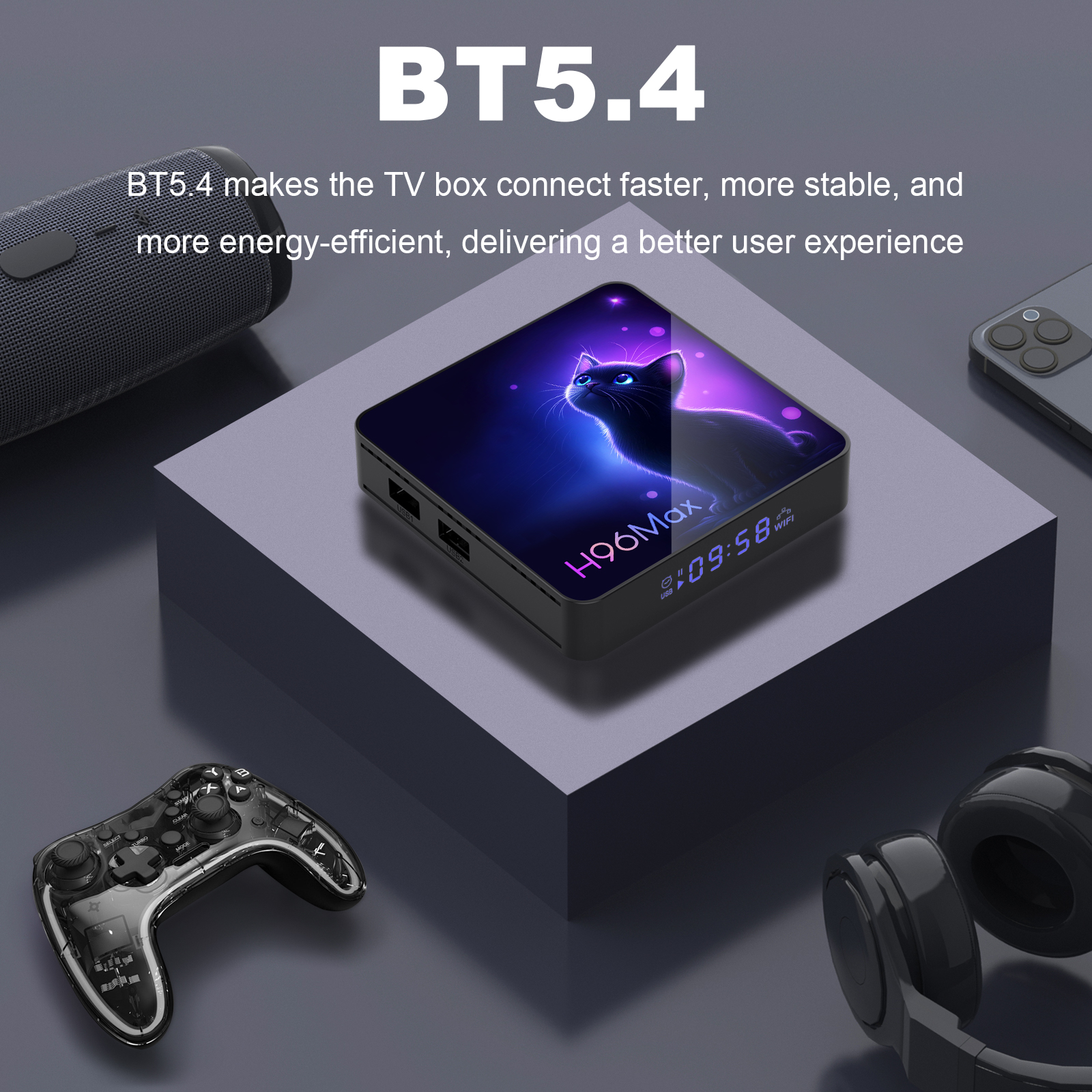

• Dual-Band WiFi 6 + Bluetooth 5.4 connectivity
• RAM: 2GB / 4GB DDR3
• ROM: 16GB / 32GB / 128GB eMMC storage options
• HDMI 2.1, AV, LAN (100M), and dual USB 2.0 ports
• Supports voice remote control
• Full OEM/ODM customization services available
Looking for other smart solutions? Explore our H96 Max M1 PLUS Android TV Box with advanced
voice navigation and user-friendly design.
Specification | Details |
CPU | Allwinner H618 Quad-Core ARM Cortex-A53 |
GPU | Mali-G31 MP2 |
RAM / ROM | 2GB/4GB DDR3 / 16GB/32GB/128GB eMMC |
OS | Android 14 |
Video Output | HDMI 2a, 8K UHD @ 24fps |
Connectivity | WiFi 6, Bluetooth 5.4 |
Ports | USB 2.0*2, HDMI, AV, LAN (100M) |
Power Supply | DC 5V/2A |
Certifications | CE, FCC, RoHS |
The H96 Max H618 PLUS 8K Android Streaming Box is OEM/ODM-ready, designed for businesses
that want to stand out with their own brand identity:
• Logo printing on device and accessories
• Custom UI interface and boot animation
• Branded retail packaging and cartons
• Pre-installed applications and IPTV service setups
• Multi-language firmware and OTA update support
With these customization services, your business can launch a fully branded Android streaming
device that matches your market goals.
• OTT and IPTV Streaming Services
• Hotel & Hospitality Entertainment Systems
• Android-Based Digital Signage Solutions
• Educational and eLearning Platforms
•Home Theater and Smart Home Media Centers
System | ||||||||||
CPU | Allwinner H618 Quad core ARM Cortex A53 | |||||||||
GPU | Mali G31 MP2 | |||||||||
RAM | 2GB/4GB | |||||||||
ROM | 16GB/32GB/128GB | |||||||||
WiFi | WLAN 802.11a/b/g/n/ax | |||||||||
I/O | HD | 2.0a,4K*2K UHD Output | ||||||||
USB | 2*USB 2.0 | |||||||||
Bluetooth | BT5.4 | |||||||||
DC | 5V/2A | |||||||||
AV | 480i/576i for CVBS | |||||||||
Ethernet | 1*100M | |||||||||
Software | ||||||||||
OS | Android 14.0 | |||||||||
Video | ·Video Decoder ·Supports multi-formats video decoding: ·H.265 MP/L6.1 up to 7680x4320@22fps ·vpg Profile 2 up to 4k@ 30fps ·AVS2 Jizhun 10bit Profile up to 4k@ 60fps ·H.264 BP/MP/[email protected] up to 4K@30fps ·H.263 BP up to 1080p@ 60fps ·MPEG-4 SP/ASP@L5 up to 1080p@60fps ·MPEG-2 MP/HL up to 1080p@60fps ·MPEG-1 MP/HL up to 1080p@60fps ·Xvid up to 1080p@60fps ·Sorenson Spark up to 1080p@60fps ·VP8 up to 1080p@60fps ·AVS/AVS+ Jizhun Profile up to 1080p@60fps ·WMV9/VC1SP/MP/AP up to 1080p@60fps ·JPEG HFIF file format up to 45MPPS ·Video Encoding ·H.264 BP/MP/HP ·H.264 supports l/P frame, and only supports single reference frame ·WPEG/JPEG baseline ·Maximum 16-megapixel (4096 x 4096) resolution for H.264 encoding ·H.264 encoding capability: 4k@25fps ·JPEG snapshot performance of 1080p@ 60fps independently ·Supports the constant bit rate (CBR)/variable bit rate (VBR) bit rate control mode, ranging from 256 kbit/s to 100Mbit/s ·Encoding of eight regions of interest (ROls) ·HD ·Integrated CEC hardware engine ·Video support: ·2D Video: 4K/1080P/10801/720P/576P/480P/5761/4801, up to 4K@ 60fps ·3D Video: 4K/1080P/720P/576P/480P,up to 4K@3fps ·Supports RGB888/YUV444/YUV422 output ·Color depth: 8/10-bit ·HDR10: compliant with CTA-861.3 and SMPTE ST 2048 | |||||||||
Audio | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE | |||||||||
Image | HD JPEG/BMP/GIF/PNG/TIFF | |||||||||
Language | Multi-Language | |||||||||
Appliactions | ||||||||||
Online | Browse all video websites,support Netflix,Hulu,Youtube, etc. | |||||||||
Apps | Apps download freely form Google Play、Apkpure store etc. | |||||||||
Medium | Local Media playback,Support HDD, U Disck | |||||||||
Talk online | Support SKYPE ,MSN , facebook ,twitter ,QQ etc | |||||||||
Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard | |||||||||
Packing | ||||||||||

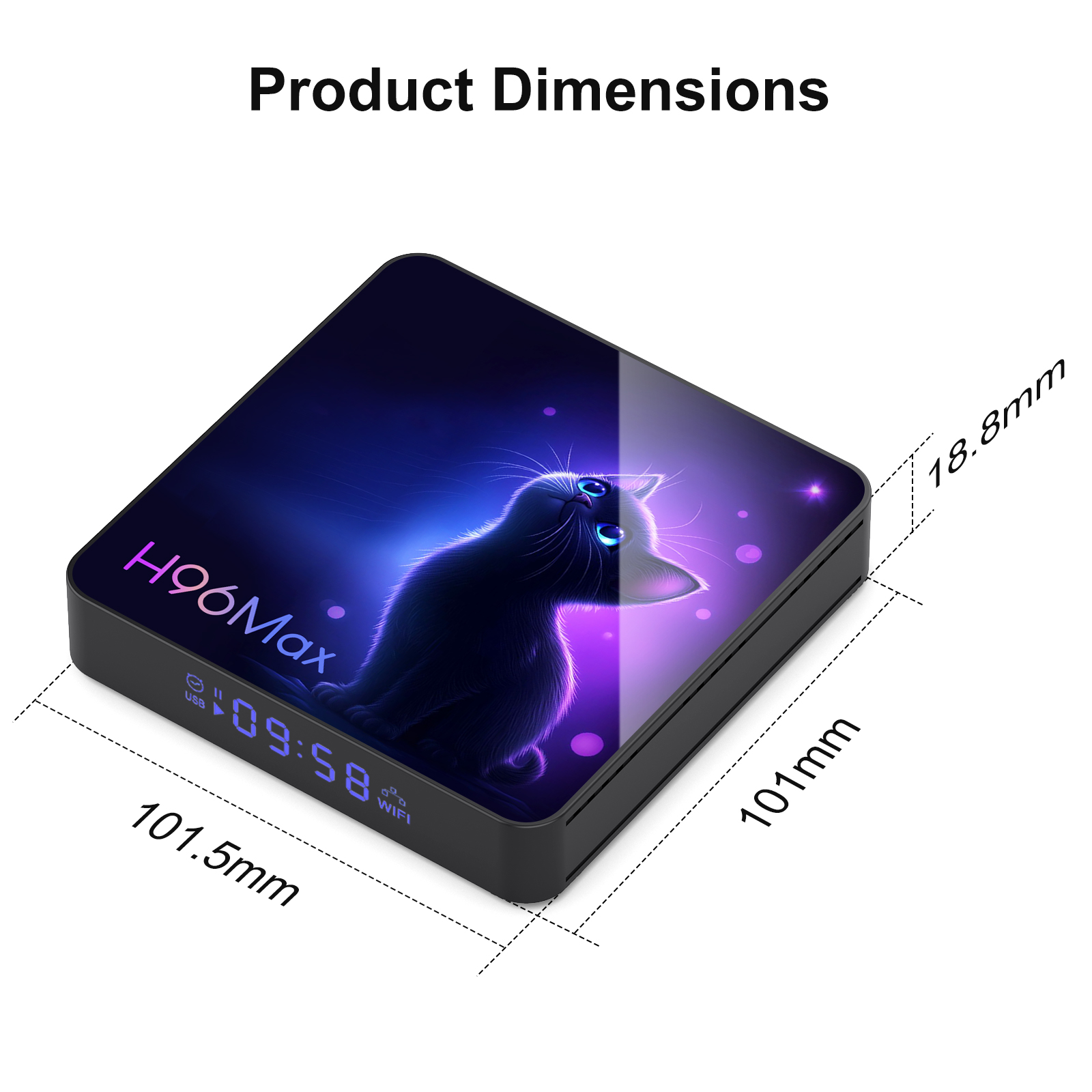

Product dimension: L101mm*W101.5mm*H19.3mm | ||||||||||
Unit products (G.W.): 113g | ||||||||||
Unit packing: L178mm*W108.5mm*H63mm | ||||||||||
Unit packing (G.W.): 360g | ||||||||||
Export carton (WxHxL): L380mm*W335mm*H245mm | ||||||||||
Export carton (G.W.): 7.8KG | ||||||||||
Qty per export carton: 20PCS | ||||||||||
Accessories | ||||||||||
HD cable *1 | BT Remote *1 | User Manual *1 | Package box *1 | Power adapter *1 |
