GPU：Mali G31 MP2
RAM：2GB/4GB
ROM：16GB/32GB/128GB
WiFi：WLAN 802.11a/b/g/n/ax
I/O
HD ：2.0a,4K*2K UHD Output
USB：2*USB 2.0
Bluetooth：BT5.4
DC ：5V/2A
AV：480i/576i for CVBS
Ethernet：1*100M
H96 Max H618 PLUS Android TV Box | Android 14, 8K UHD,
Voice Remote, WiFi 6
The H96 Max H618 PLUS Android TV Box is your next-gen media powerhouse, equipped with the
powerful Allwinner H618 chipset and the latest Android 14 OS. Designed for seamless 8K UHD
streaming, fast WiFi 6 connectivity, and responsive Bluetooth 5.4, this smart box delivers premium
entertainment and professional customization for IPTV providers, system integrators, and global
OEM/ODM clients.
Whether you're building your IPTV brand or scaling your OTT streaming business, the H96 Max
H618 PLUS Android TV Box supports complete customization — from logo and UI to firmware and
packaging — giving you a turnkey solution to lead in your market.

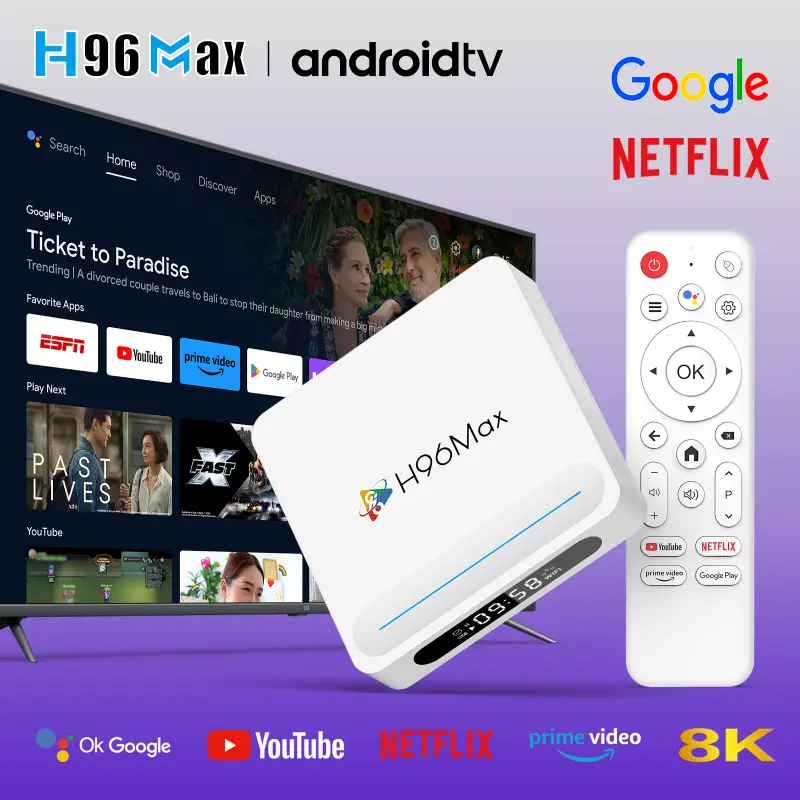

_Bt6cIR.webp "Front view of H96 Max H618 PLUS Android TV Box with logo")
🔍 Key Features
Android 14 Operating System
Allwinner H618 Quad-Core ARM Cortex-A53 Processor
8K UHD Video Decoding @ 24fps

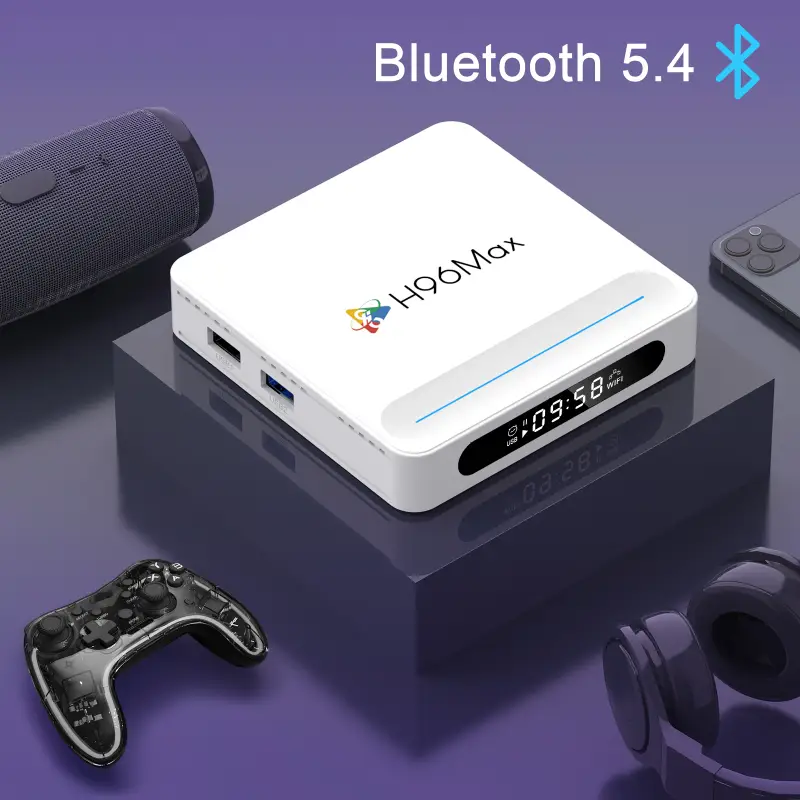

Dual-Band WiFi 6 + Bluetooth 5.4
RAM: 2GB / 4GB DDR3
ROM: 16GB / 32GB / 128GB eMMC
Dual USB 2.0 Ports, HDMI 2.1, AV, LAN (100M)

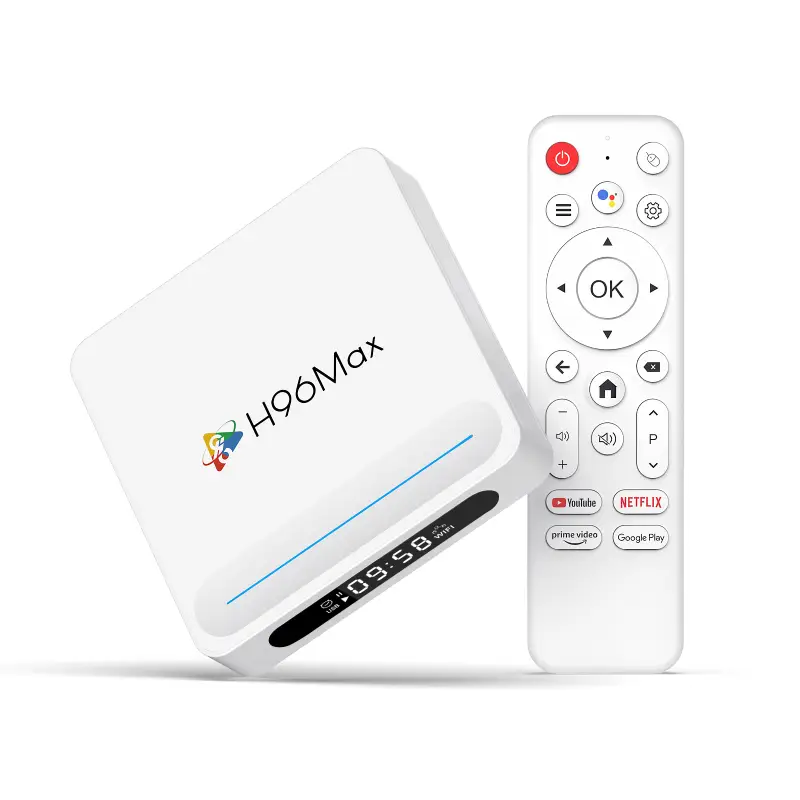

Supports voice remote control
Full OEM/ODM customization available
🛠 Looking for more voice-enabled boxes? Check out our H96 Max M1 PLUS Android TV Box with voice
remote.
🔧 Technical Specifications
Specification | Details |
CPU | Allwinner H618, Quad-Core Cortex-A53 |
GPU | Mali-G31 MP2 |
RAM / ROM | 2GB/4GB DDR3 / 16GB/32GB/128GB eMMC |
OS | Android 14 |
Video Output | HDMI 2a, 8K UHD @ 24fps |
Connectivity | WiFi 6, Bluetooth 5.4 |
Ports | USB 2.0*2, HDMI, AV, LAN (100M) |
Power Supply | DC 5V/2A |
Certifications | CE, FCC, RoHS |
🏭 OEM/ODM Customization
We specialize in OEM/ODM services, enabling your brand to shine with:
Device logo printing
Customized UI and boot animation
Retail packaging and cartons
Pre-installed APKs and settings
Multi-language firmware and OTA support
📦 Learn more about our Custom Android TV Box services
🎯 Application Scenarios
OTT Streaming & IPTV Services
Hospitality Entertainment Systems
Digital Signage Players
Educational Media Devices
Home Theater & Smart Home Systems
🤝 Partner with H96 Max TV Box Factory to scale your B2B projects globally.
❓ FAQs
Q1: Does the H96 Max H618 PLUS support voice control?
Yes, it supports voice remote functionality for convenient navigation and search.
Q2: Can I customize the software interface and logo?
Absolutely! We offer full OEM branding, firmware adjustment, and pre-installed apps.
Q3: Is it certified for international use?
Yes, this model is CE, FCC, and RoHS certified, meeting major global compliance standards.
Ready to take your business to the next level?
Contact us now for wholesale pricing, OEM/ODM support, and fast sample delivery.
Let’s build your custom Android TV Box solution together.
| System | ||||||||||
| CPU | Allwinner H618 Quad core ARM Cortex A53 | |||||||||
| GPU | Mali G31 MP2 | |||||||||
| RAM | 2GB/4GB | |||||||||
| ROM | 16GB/32GB/128GB | |||||||||
| WiFi | WLAN 802.11a/b/g/n/ax | |||||||||
| I/O | HD | 2.0a,4K*2K UHD Output | ||||||||
| USB | 2*USB 2.0 | |||||||||
| Bluetooth | BT5.4 | |||||||||
| DC | 5V/2A | |||||||||
| AV | 480i/576i for CVBS | |||||||||
| Ethernet | 1*100M | |||||||||
| Software | ||||||||||
| OS | Android 14.0 | |||||||||
| Video | ·Video Decoder ·Supports multi-formats video decoding: ·H.265 MP/L6.1 up to 7680x4320@22fps ·vpg Profile 2 up to 4k@ 30fps ·AVS2 Jizhun 10bit Profile up to 4k@ 60fps ·H.264 BP/MP/[email protected] up to 4K@30fps ·H.263 BP up to 1080p@ 60fps ·MPEG-4 SP/ASP@L5 up to 1080p@60fps ·MPEG-2 MP/HL up to 1080p@60fps ·MPEG-1 MP/HL up to 1080p@60fps ·Xvid up to 1080p@60fps ·Sorenson Spark up to 1080p@60fps ·VP8 up to 1080p@60fps ·AVS/AVS+ Jizhun Profile up to 1080p@60fps ·WMV9/VC1SP/MP/AP up to 1080p@60fps ·JPEG HFIF file format up to 45MPPS ·Video Encoding ·H.264 BP/MP/HP ·H.264 supports l/P frame, and only supports single reference frame ·WPEG/JPEG baseline ·Maximum 16-megapixel (4096 x 4096) resolution for H.264 encoding ·H.264 encoding capability: 4k@25fps ·JPEG snapshot performance of 1080p@ 60fps independently ·Supports the constant bit rate (CBR)/variable bit rate (VBR) bit rate control mode, ranging from 256 kbit/s to 100Mbit/s ·Encoding of eight regions of interest (ROls) ·HD ·Integrated CEC hardware engine ·Video support: ·2D Video: 4K/1080P/10801/720P/576P/480P/5761/4801, up to 4K@ 60fps ·3D Video: 4K/1080P/720P/576P/480P,up to 4K@3fps ·Supports RGB888/YUV444/YUV422 output ·Color depth: 8/10-bit ·HDR10: compliant with CTA-861.3 and SMPTE ST 2048 | |||||||||
| Audio | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE | |||||||||
| Image | HD JPEG/BMP/GIF/PNG/TIFF | |||||||||
| Language | Multi-Language | |||||||||
| Appliactions | ||||||||||
| Online | Browse all video websites,support Netflix,Hulu,Youtube, etc. | |||||||||
| Apps | Apps download freely form Google Play、Apkpure store etc. | |||||||||
| Medium | Local Media playback,Support HDD, U Disck | |||||||||
| Talk online | Support SKYPE ,MSN , facebook ,twitter ,QQ etc | |||||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard | |||||||||
| Packing | ||||||||||

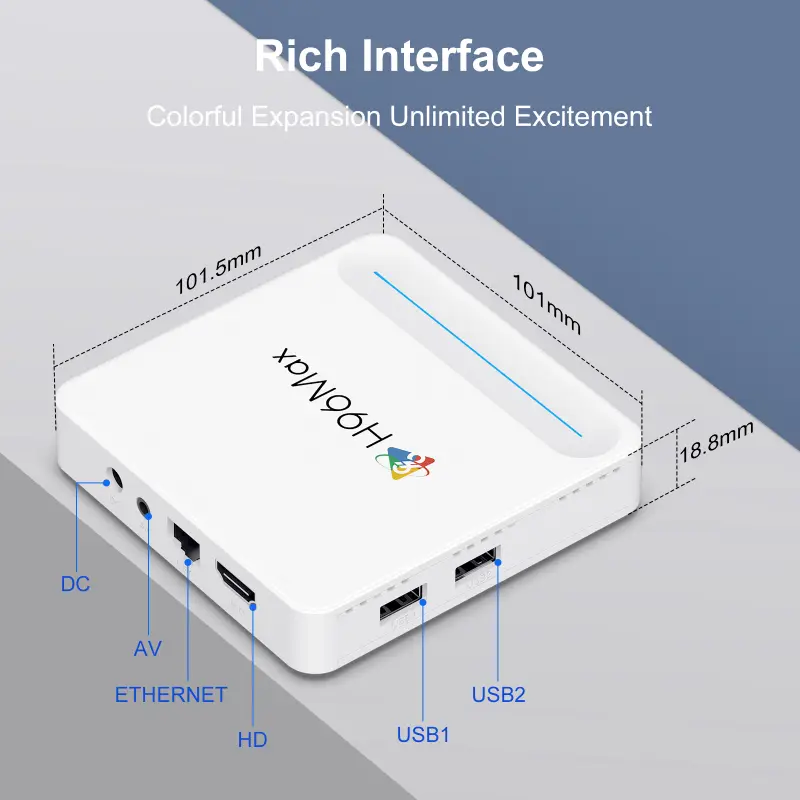

| Product dimension: L101mm*W101.5mm*H19.3mm | ||||||||||
| Unit products (G.W.): 113g | ||||||||||
| Unit packing: L178mm*W108.5mm*H63mm | ||||||||||
| Unit packing (G.W.): 360g | ||||||||||
| Export carton (WxHxL): L380mm*W335mm*H245mm | ||||||||||
| Export carton (G.W.): 7.8KG | ||||||||||
| Qty per export carton: 20PCS | ||||||||||

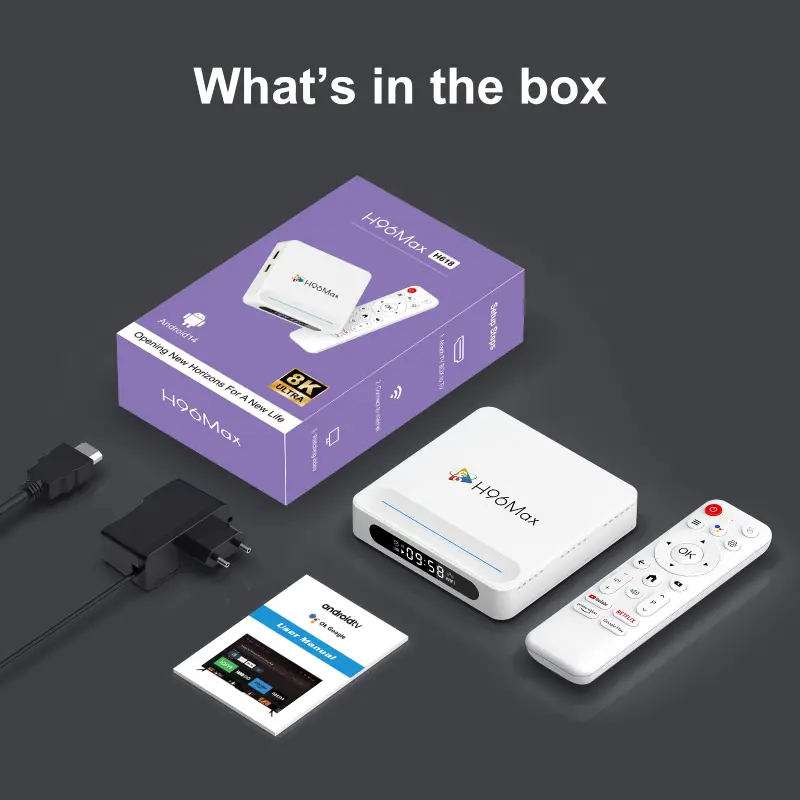

| Accessories | ||||||||||
| HD cable *1 | BT Remote *1 | User Manual *1 | Package box *1 | Power adapter *1 | ||||||
