Product model: H96MAXH728
Bare Metal Size: L85*W85*H69MM
Packaging size of the whole machine: L154*W132*H75MM
Bare Metal Weight: 0.155KG
The weight of the whole machine: 0.43KG
Outer box size: L392*W328*H287MM
Number of complete boxes: 20 units/box
Whole box weight: 9.2KG

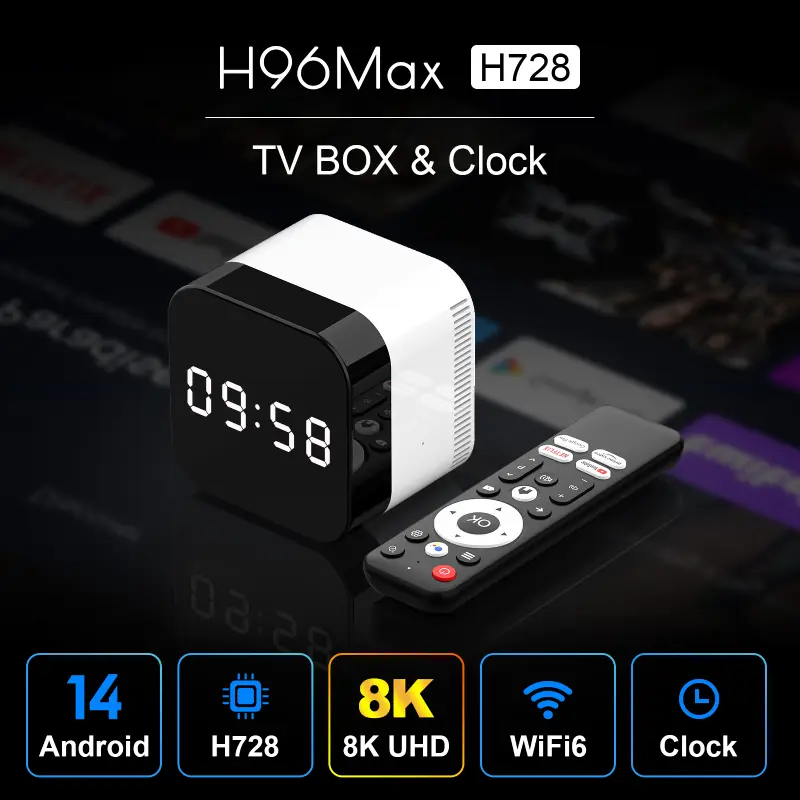

H96 Max H728 Android TV Box | 8K UHD, Android 14, WiFi 6, OEM Ready
The H96 Max H728 Android TV Box is engineered for ultra-fast performance, powered by the
advanced H728 chipset and the latest Android 14 operating system. With 8K UHD decoding
capabilities, WiFi 6, Bluetooth 5.4, and voice remote functionality, this model is built for high-end
OTT streaming, IPTV integration, and commercial customization. Designed with OEM/ODM
scalability in mind, the H96 Max H728 offers robust features such as time display, dual USB ports
including USB 3.0, and a 1000M LAN port for stable, high-speed connectivity.
Whether you're a reseller, telecom operator, or hotel system integrator, the H96 Max H728 Android
TV Box provides a complete solution with flexible branding, firmware customization, and
multilingual support.
🔧 Key Features:
Android 14 OS for fast, secure, and flexible operation
H728 high-performance chipset with advanced graphics decoding
8K UHD video decoding & HDMI 2.1 output
Voice remote control for hands-free operation
Dual-band WiFi 6 + Bluetooth 5.4
2GB/4GB DDR3 RAM and 16GB/32GB/128GB eMMC storage
USB 2.0 + USB 3.0 + HDMI + AV + 1000M Ethernet
Real-time digital clock display on front panel
Custom logo, UI, and firmware available for OEM/ODM orders
👉 Looking for an ultra-performance TV box? See also our H96 Max RK3528 Android TV Box with voice
remote.
⚙️ Technical Specifications:
Specification | Details |
Chipset | H728 Quad-Core |
Operating System | Android 14 |
Video Output | HDMI 2.1, 8K @ 24fps, 4K @ 60fps |
RAM / ROM | 2GB / 4GB DDR3 + 16GB / 32GB / 128GB eMMC |
Connectivity | WiFi 6, Bluetooth 5.4, 1000M LAN |

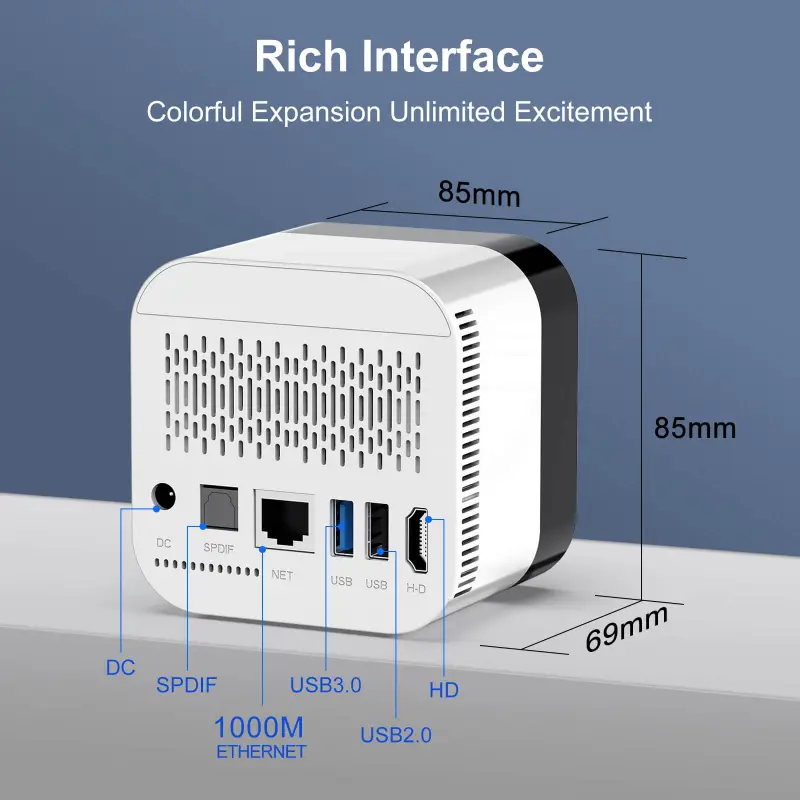

Ports | USB 2.0, USB 3.0, HDMI, AV, LAN |
Power | DC 5V / 2A |
Display | Front LED time display |
Certifications | CE, FCC, RoHS |
🧩 OEM/ODM Customization Services:
We provide full OEM/ODM customization for global partners, including:
Custom logo printing and housing design
Boot animation and UI interface localization
Multilingual firmware development
APK pre-installation and launcher branding
Retail packaging & shipping cartons customization
Learn more on our OEM/ODM Customization Page.
🖥️ Application Scenarios:
IPTV Middleware Deployment
OTT Streaming Solutions
Hotel TV System Integration
Home Theater & Entertainment
E-learning and Digital Signage
🛠️ Ready to scale with your brand? Contact us for a tailored quote today!
❓ FAQs
Q1: Does the H96 Max H728 Android TV Box support voice control?
Yes, it supports voice remote functions, allowing hands-free control via Google Assistant (remote
optional).
Q2: Can I customize the time display or disable it?
Yes, the digital time display can be enabled or disabled via firmware settings depending on your
requirements.
Q3: Is this model suitable for IPTV operators?
Absolutely. With 1000M LAN, OEM-ready firmware, and 8K decoding, it's ideal for IPTV & OTT
deployments.
| System | ||||||||||
| CPU | Octa-core ARM Cortex™-A55 | |||||||||
| GPU | ARM G57 MC1 GPU | |||||||||
| RAM | 2GB/4GB | |||||||||
| ROM | 16GB/32GB/128GB | |||||||||
| WiFi | WLAN 802.11a/b/g/n/ax | |||||||||
| Bluetooth | BT 5.4 | |||||||||
| I/O | HD | Up to 4K@60fps | ||||||||
| USB | 1*USB3.0 and 1*USB2.0 | |||||||||
| DC | 5V/2A | |||||||||
| LAN | Ethernet:1000 standard RJ-45 | |||||||||
| SPDIF | support | |||||||||
| Software | ||||||||||
| OS | Android 14.0 | |||||||||
| Video | Supports ITU-T H.265 Main/Main10, level 6.1 | |||||||||
| Maximum video resolution:8192x4320 | ||||||||||
| Maximum decoding rate: 7680x4320@24fps | ||||||||||
| Supports VP9 Profile0/Profile2, level 6.1 | ||||||||||
| Maximum video resolution: 8192 x4320 | ||||||||||
| Maximum decoding rate: 7680x4320@24fps | ||||||||||
| Supports ITU-T H.264 Base/Main/High [email protected] | ||||||||||
| Maximum video resolution: 3840x2160 | ||||||||||
| Maximum decoding rate: 3840x2160@30fps | ||||||||||
| H.264 BP/MP/HP encoding | ||||||||||
| Supports 4K@25fps@8bits | ||||||||||
| Maximum resolution: 4096x4096(16 megapixels) | ||||||||||
| Supports I/P frame type | ||||||||||
| Supports CBR, VBR and FIXEDQP modes | ||||||||||
| Supports region of interest(ROl) encoding, a maximum of eight ROls | ||||||||||
| MJPEG encoder supports 4K@15fps | ||||||||||
| JPEG encoder supports YUV420, YUV422 and YUV444 format | ||||||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC | |||||||||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||||
| Language | Multi-Language | |||||||||
| Appliactions | ||||||||||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |||||||||
| Apps | Apps download freely form android market etc. | |||||||||
| Medium | Local Media playback,Support HDD, U Disck | |||||||||
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |||||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard | |||||||||
| Packing | ||||||||||
| Product dimension (WxHxL): W69mm*H85mm*L85mm | ||||||||||
| Unit products (G.W.): 0.155kg | ||||||||||
| Unit packing(WxHxL): W132mm*H75mm*L154mm | ||||||||||
| Unit packing (G.W.): 0.143kg | ||||||||||
| Export carton (WxHxL): W328mm*H287mm*L392mm | ||||||||||
| Export carton (G.W.): 9.2kg | ||||||||||
| Qty per export carton: 20 | ||||||||||

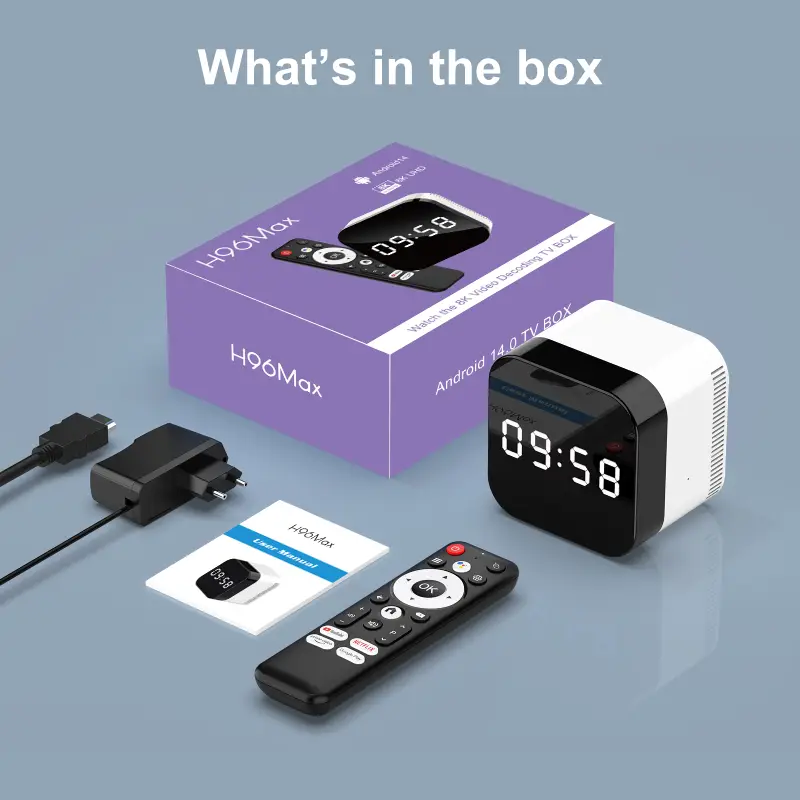

| Accessories | ||||||||||
| HD cable *1 | Remote *1 | User Manual *1 | Package box *1 | Power adapter *1 | ||||||
