  • H96 Max M1 PLUS Android TV Box
    ❤ Add to collection
  • H96 Max M1 PLUS Android TV Box

    CPU:RK3528 Quad Core ARM Cortex-A53
    GPU:Mali-450 MP2
    RAM:2GB/4GB
    ROM:16GB/32GB/128GB
    WiFi:WLAN 802.11a/b/g/n/ax
    Bluetooth:BT 5.4

    I/O
    HD:2.0b,4K*2K UHD Output
    USB:USB 2.0*2
    IR Reciver:Remote Reciver Connect
    DC :5V/2A
    AV:480i/576i for CVBS
    LAN:Ethernet:100 standard RJ-45

    • ¥0.00
      ¥0.00
      ¥0.00
      ¥0.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.000KG
    • Quantity:
    • INQUIRY
Description

CPU:RK3528 Quad Core ARM Cortex-A53
GPU:Mali-450 MP2
RAM:2GB/4GB
ROM:16GB/32GB/128GB
WiFi:WLAN 802.11a/b/g/n/ax
Bluetooth:BT 5.4

I/O
HD:2.0b,4K*2K UHD Output
USB:USB 2.0*2
IR Reciver:Remote Reciver Connect
DC :5V/2A
AV:480i/576i for CVBS
LAN:Ethernet:100 standard RJ-45



📦 H96 Max M1 PLUS Android TV Box | Android 14, 8K,


WiFi 6, OEM Ready


The H96 Max M1 PLUS Android TV Box is built to deliver next-generation entertainment with

robust performance, powered by the RK3528 chipset and the latest Android 14 OS. With stunning

8K video decoding, WiFi 6 for high-speed streaming, and Bluetooth 5.4 for seamless device pairing,

it’s perfect for IPTV providers, distributors, and system integrators.

Whether you're looking for a reliable Android TV solution or a scalable OEM platform, the H96 Max

M1 PLUS Android TV Box offers unmatched flexibility with voice remote support, multiple memory

configurations, and rich connectivity ports to meet global B2B demands.

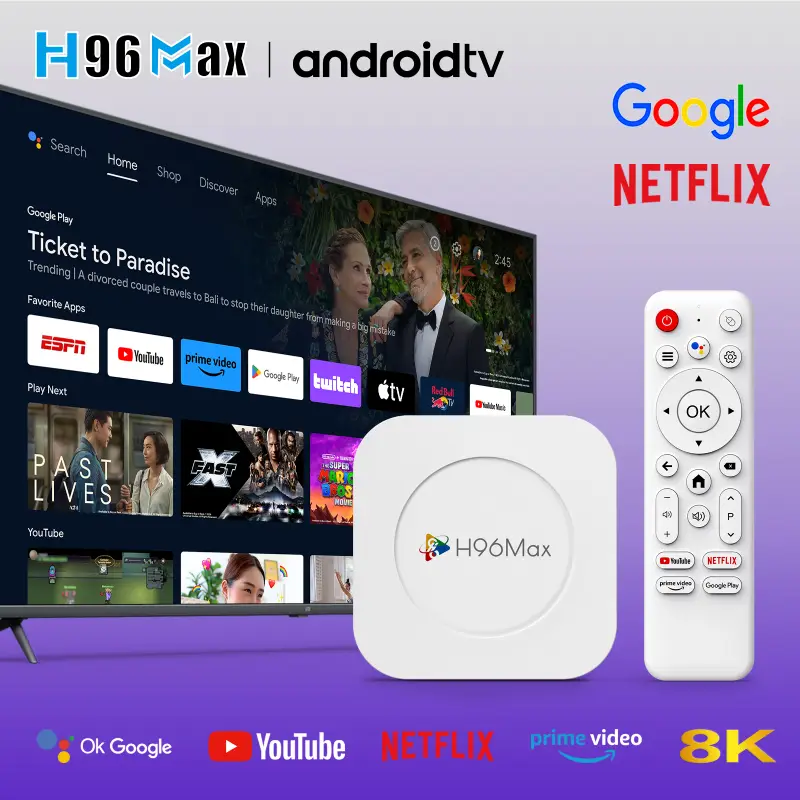

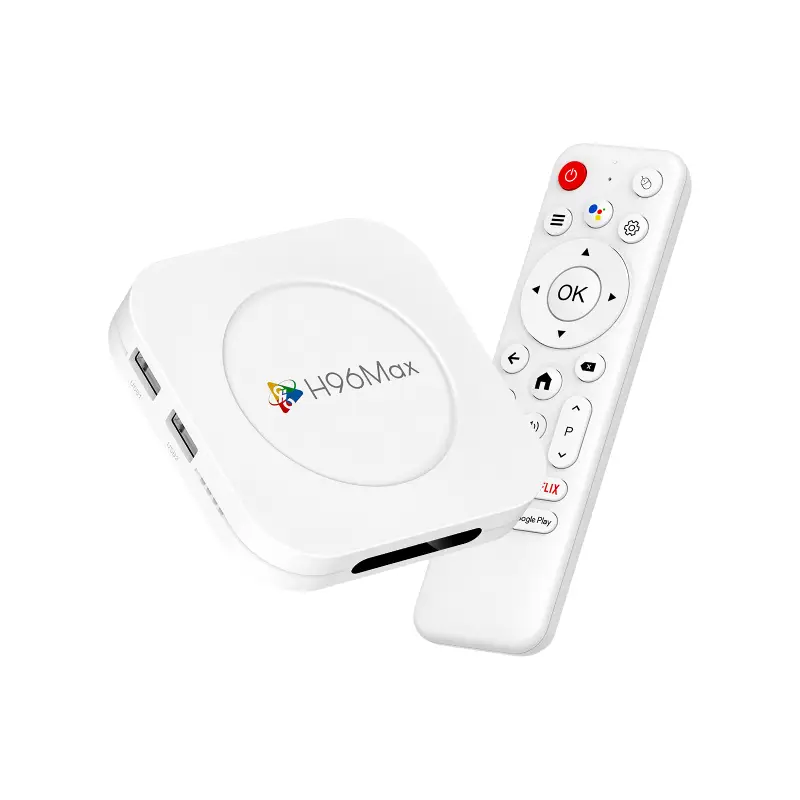

H96 Max M1 PLUS Android TV Box with voice remote and HDMI cable on white background


🔍 Key Features:

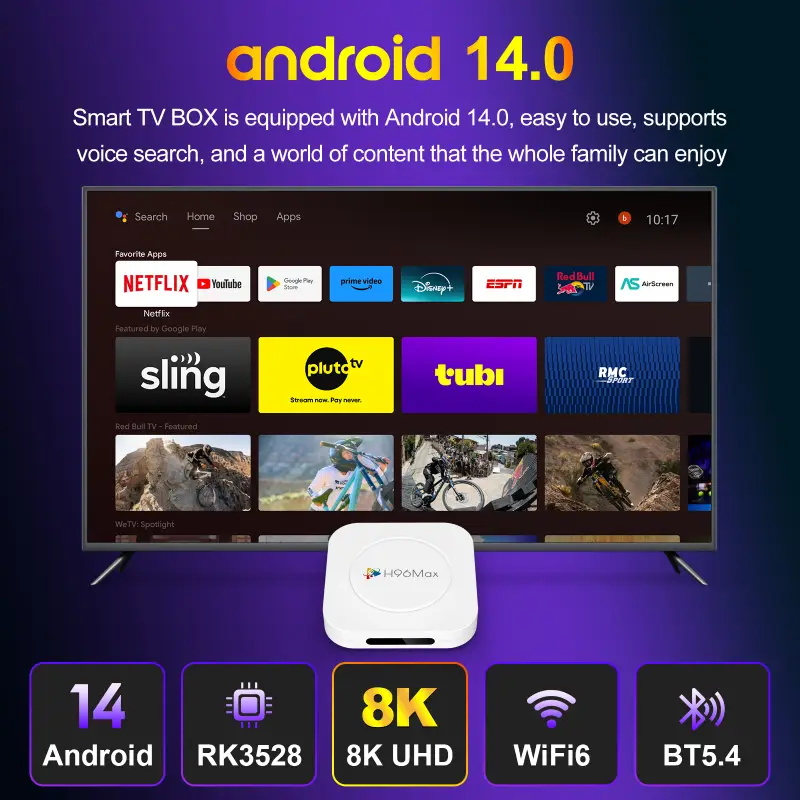

  • Android 14 Operating System

  • RK3528 Quad-Core Cortex-A53 Processor

  • 8K UHD Video Decoding & HDMI 2.1 Output

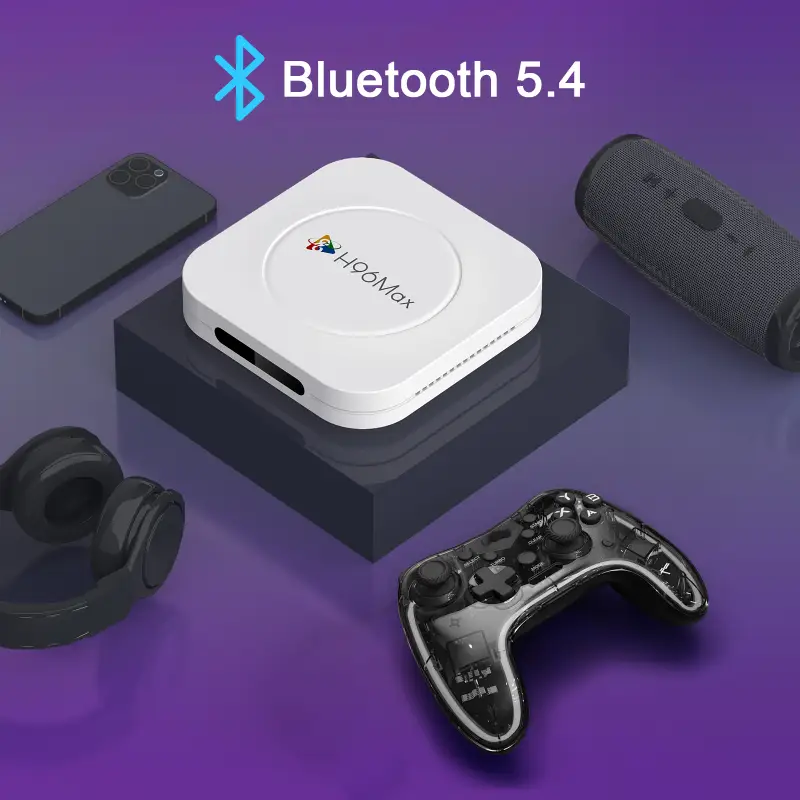

  • WiFi 6 Dual-Band + Bluetooth 5.4

  • RAM: 2GB / 4GB DDR3

  • ROM: 16GB / 32GB / 128GB eMMC

  • Dual USB 2.0, AV, LAN (100M) Ports

  • Voice Remote Control Support

  • OEM/ODM Ready: Custom logo, UI, and packaging


Need a higher-end solution? View our H96 Max H728 Android TV Box with Voice Remote for

premium setups.


Custom branded packaging for H96 Max M1 PLUS Android TV Box displayed on table


📊 Technical Specifications


SpecificationDetails
CPURK3528 Quad-Core Cortex-A53
GPUMali-450 MP2
RAM / ROM2GB/4GB DDR3 / 16GB/32GB/128GB eMMC
OSAndroid 14
Video OutputHDMI 2.1, 8K @ 24fps, 4K @ 60fps
WirelessWiFi 6, Bluetooth 5.4
PortsUSB 2.0*2, AV, HDMI, 100M LAN
Power SupplyDC 5V/2A
CertificationCE, FCC, RoHS

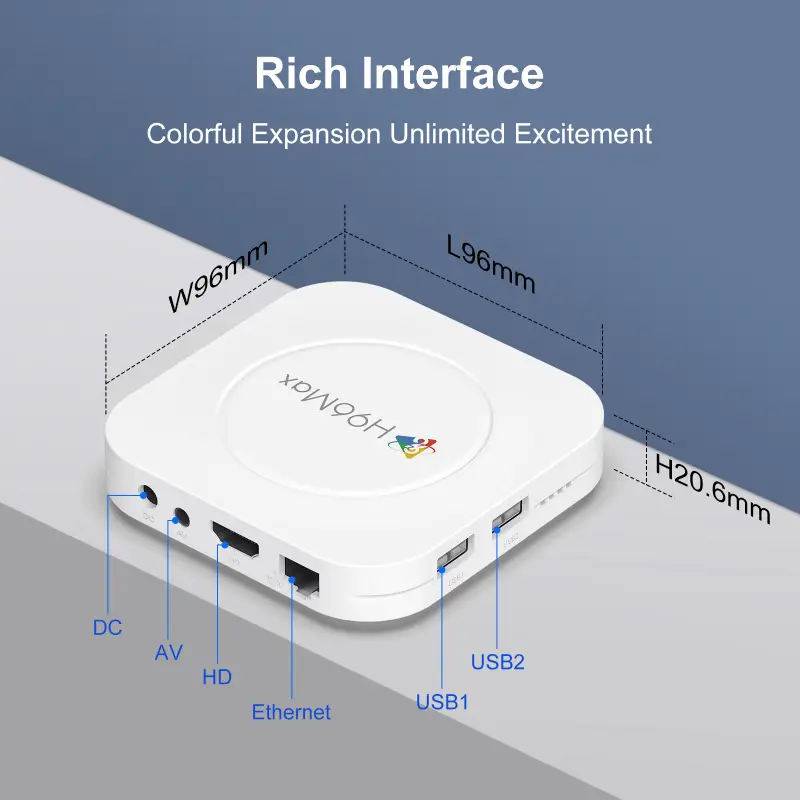

Back view showing USB, LAN, and HDMI ports of H96 Max M1 PLUS Android TV Box


🧩 OEM/ODM Customization Services


We support full customization for your brand:


  • Custom device logo printing

  • Personalized UI & boot animations

  • Retail box & outer carton branding

  • Pre-installed APKs tailored to your region

  • Firmware tuning with multi-language support


🔗 Explore Custom Android TV Box Solutions


Factory workers assembling H96 Max M1 PLUS Android TV Boxes on production line


🎯 Application Scenarios


  • IPTV & OTT Streaming Boxes

  • Hotel Room Smart TV Integration

  • Digital Signage and Education Displays

  • Home Theater and Android Gaming

  • Multi-language Android Set-top Box Projects


📦 Packaging & Presentation


Custom retail boxes and branding are available to suit global markets. We also offer drop shipping

and warehouse support for bulk orders.


Custom OEM packaging for H96 Max M1 PLUS Android TV Box with multilingual labeling


❓ FAQs

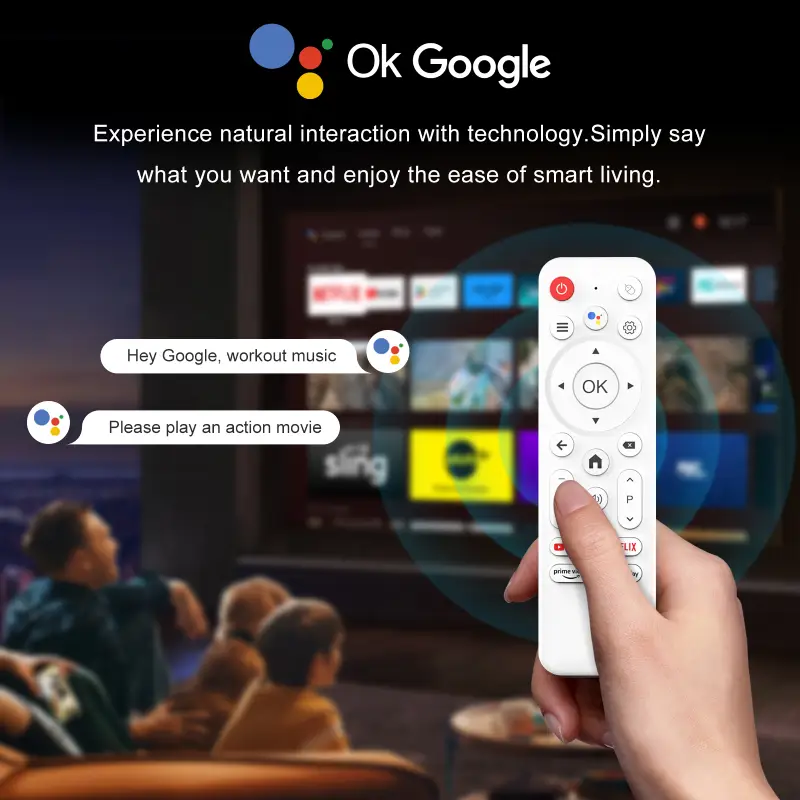

Q1: Does the H96 Max M1 PLUS support voice control?


Yes, it supports voice remote functionality for an enhanced smart TV experience.


Q2: Can I get a sample before placing a bulk order?


Absolutely! Samples are available with OEM branding upon request. Learn about our Sample Policy.


Q3: What kind of customization do you support?


From logo to UI, packaging to firmware, we offer complete OEM/ODM customization to help grow

your brand.


Ready to take your business to the next level?

Contact us now for wholesale pricing, OEM/ODM support, and fast sample delivery.
Let’s build your custom Android TV Box solution together.


System
CPURK3528 Quad Core ARM Cortex-A53
GPUMali-450 MP2
RAM2GB/4GB
ROM16GB/32GB/128GB
WiFiWLAN 802.11a/b/g/n/ax
BluetoothBT 5.4
I/OHD2.0b,4K*2K UHD Output
USBUSB 2.0*2
IR ReciverRemote Reciver Connect
DC 5V/2A
AV480i/576i for CVBS
LANEthernet:100 standard RJ-45
Software
OSAndroid 14.0
Video·Video Decoder
·Real-time video decoder of
     MPEG-1, MPEG-2, MPEG-4
     H.263, H.264/AVC, H.265/HEVC, MVC
     VC-1
     AVS, AVS+,AVS2
·MMU Embedded
·Supports frame timeout interrupt, frame finish interrupt and bit stream error interrupt
·Error detection and concealment support for all video formats
·Output data format YUV420 semi-planar, YUV400(monochrome), YUV422 is
  supported by H.264
·H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K@60fps and 8K*4K@23fps
·H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K@60fps and 8K*4K@23fps
·AVS2 4KX2K @60fps
·MPEG-1, Main profile, up to 1080P@60fps
·MPEG-2, SP@ML, MP@HL, up to 1080P@60fps
·MPEG-4, ASP profile @ level 5, up to 1080P@60fps
·AVS, Jizhun profile @ level 6.0; up to 1080P@60fps
·AVS-P16 (AVS+), up to 1080P@60fps
·H.263, up to 576P@60fps
·VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P@60fps

·Video Encoder
·Support video encoder for H.264, [email protected]
·H.264 maximum frame rate is up to 1920x1080@60fps
·Capable of encoding HEVC Main Profile @ L4.1 High-tier
·H.265 resolution and frame rate are up to 1920x1080 @60fps
·JPEG encoder included

·Video OUT
·Display Interface
  ·Support HD 2.0b output up to 4K 10bit @60Hz
  ·HD interface:
        24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444)
        Max output resolution 4K for HD, 480i/576i for CVBS
·HD
·Compliant HD 2.0b
·Support YUV420 4k x 2k @ 60fps
·Support for 4k x 2k and 3D video formats
·Support for up to 10.2bps bandwidth
·Support HDR10
AudioSupports MP3, AAC, WMA, RM, FLAC
ImageHD JPEG、BMP、GIF、PNG、TIF
LanguageMulti-Language
Appliactions
OnlineBrowse all video websites,support Netflix,Hulu,Youtube, etc.
AppsApps download freely form Google Play、Apkpure store etc.
MediumLocal Media playback,Support HDD, U Disck
Talk onlineSupport  SKYPE ,MSN , facebook ,twitter ,QQ  etc
OthersSupport Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Packing
Product dimension: L96mm*W96mm*H20.6mm
Unit products (G.W.): 122g
Unit packing:
Unit packing (G.W.):
Export carton (WxHxL):
Export carton (G.W.):
Qty per export carton:

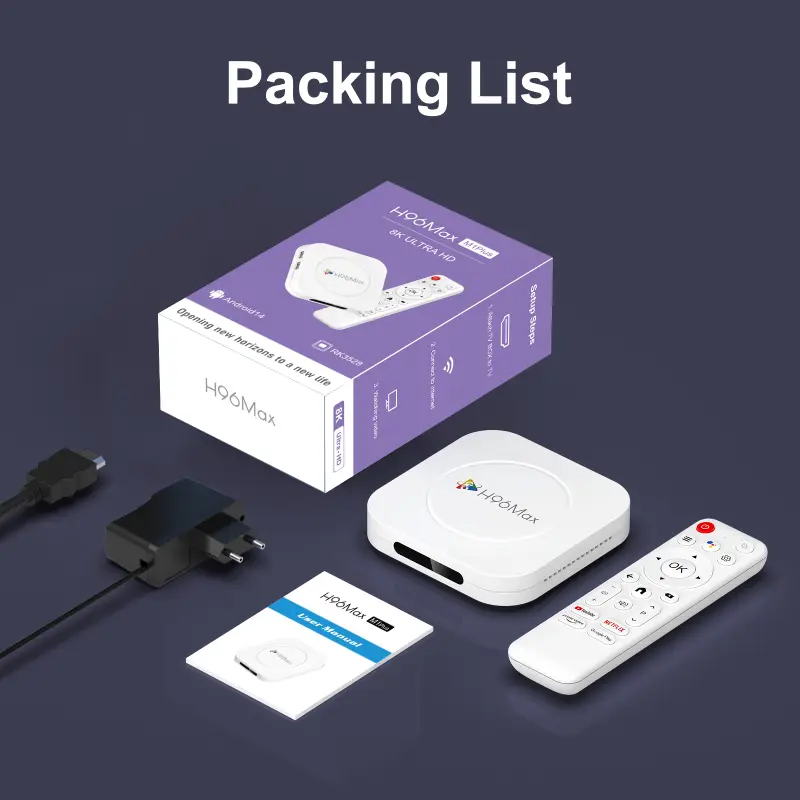

Accessories
HD cable *1BT Remote *1User Manual *1Package box *1Power adapter *1
