CPU: RK3528 Quad Core ARM Cortex-A53
GPU: Mali-450 MP2
RAM: 2GB/4GB
ROM: 16GB/32GB/128GB
WiFi: WLAN 802.11a/b/g/n/ax
Bluetooth: BT 5.4
HD: 2.0b,4K*2K UHD Output
USB: USB 2.0
DC: 5V/2A
AV: 480i/576i for CVBS
LAN: Ethernet:100 standard RJ-45
The H96 Max M2 PLUS Android TV Box is engineered with the powerful RK3528 chipset and the
latest Android 14 OS, offering outstanding 8K video decoding, dual-band WiFi 6, and Bluetooth 5.4
connectivity. Built for OEM/ODM flexibility, this Android TV Box is ideal for IPTV providers, system
integrators, and global resellers. Whether you need custom branding, pre-installed apps, or
packaging tailored to your market, the H96 Max M2 PLUS Android TV Box is your all-in-one solution
for premium smart TV experiences.

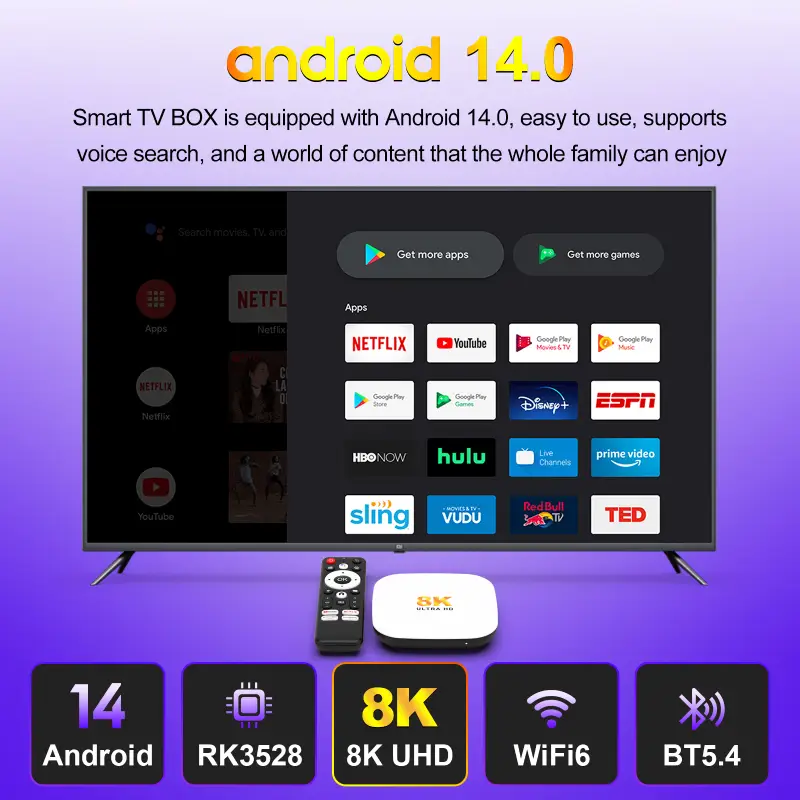

Android 14 Operating System
RK3528 Quad-Core Cortex-A53 CPU
Up to 8K UHD Video Decoding

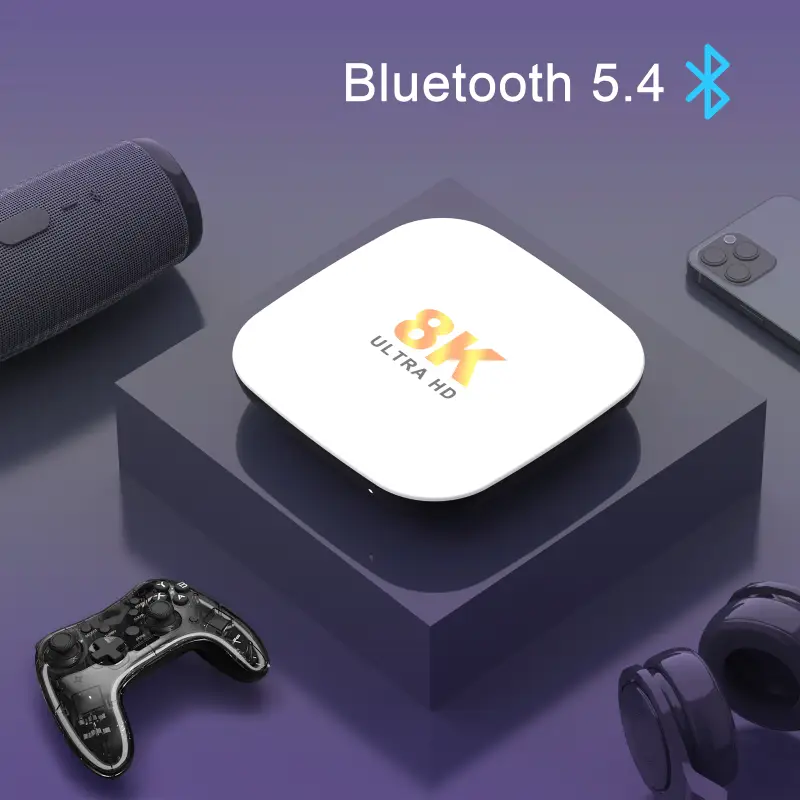

WiFi 6 + Bluetooth 5.4
2GB/4GB DDR3 RAM + 16GB/32GB/128GB eMMC ROM
Supports voice remote control
USB 2.0, HDMI, AV, and LAN Port (100M)
Custom Logo, UI, and Packaging for OEM/ODM
Need a more advanced configuration? View our H96 Max M9S Android TV Box with voice remote for premium setups.
Specification | Details |
CPU | RK3528 Quad-Core Cortex-A53 |
GPU | Mali-450 MP2 |
RAM / ROM | 2GB or 4GB DDR / 16GB, 32GB or 128GB eMMC |
Operating System | Android 14 |
Video Output | HDMI 2.1, 8K UHD @ 24fps, 4K @ 60fps |
Connectivity | WiFi6, BT 5.4 |
Ports | AV,HDMI, USB 2.0, LAN (100M) |
Power Supply | 5V/2A |
Certifications | CE, FCC, RoHS |
We offer comprehensive customization services including:
Device logo printing
Custom UI and boot animation
Retail box and carton branding
Pre-installed APKs
Firmware tuning and multi-language support
Interested in private label solutions? Visit our Custom Android TV Box Packaging page to learn
more.
👉 Request a Custom Quote Now to start your OEM project.
OTT Media Streaming
Hotel & Hospitality TV Systems
Digital Signage Players
Home Theater & E-learning Solutions
IPTV Subscription Boxes
Learn why partnering with an Android TV Box factory is crucial for scalable business growth.
Q1: Can I order a sample before bulk purchase?
Yes! Sample orders are welcome with fast shipping and OEM customization options. Check
our Sample Request Policy for details.
Q2: What certifications does the H96 Max M2 PLUS Android TV Box have?
All units come with CE, FCC, and RoHS certifications to meet global standards.
Q3: Can I customize the logo and user interface?
Absolutely. We support full OEM/ODM branding, firmware customization, and packaging. Learn more
on our Can I print my own logo on your product? page.
Contact us now for wholesale pricing, OEM/ODM support, and fast sample delivery.
Let’s build your custom Android TV Box solution together.
System | ||||||||||
CPU | RK3528 Quad Core ARM Cortex-A53 | |||||||||
GPU | Mali-450 MP2 | |||||||||
RAM | 2GB/4GB | |||||||||
ROM | 16GB/32GB/128GB | |||||||||
WiFi | WLAN 802.11a/b/g/n/ax | |||||||||
Bluetooth | BT 5.4 | |||||||||
I/O | HD | 2.0b,4K*2K UHD Output | ||||||||
USB | USB 2.0 | |||||||||
IR Reciver | Remote Reciver Connect | |||||||||
DC | 5V/2A | |||||||||
AV | 480i/576i for CVBS | |||||||||
LAN | Ethernet:100 standard RJ-45 | |||||||||
Software | ||||||||||
OS | Android 14.0 | |||||||||
Video | ·Video Decoder ·Real-time video decoder of MPEG-1, MPEG-2, MPEG-4 H.263, H.264/AVC, H.265/HEVC, MVC VC-1 AVS, AVS+,AVS2 ·MMU Embedded ·Supports frame timeout interrupt, frame finish interrupt and bit stream error interrupt ·Error detection and concealment support for all video formats ·Output data format YUV420 semi-planar, YUV400(monochrome), YUV422 is supported by H.264 ·H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K@60fps and 8K*4K@23fps ·H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K@60fps and 8K*4K@23fps ·AVS2 4KX2K @60fps ·MPEG-1, Main profile, up to 1080P@60fps ·MPEG-2, SP@ML, MP@HL, up to 1080P@60fps ·MPEG-4, ASP profile @ level 5, up to 1080P@60fps ·AVS, Jizhun profile @ level 6.0; up to 1080P@60fps ·AVS-P16 (AVS+), up to 1080P@60fps ·H.263, up to 576P@60fps ·VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P@60fps ·Video Encoder ·Support video encoder for H.264, [email protected] ·H.264 maximum frame rate is up to 1920x1080@60fps ·Capable of encoding HEVC Main Profile @ L4.1 High-tier ·H.265 resolution and frame rate are up to 1920x1080 @60fps ·JPEG encoder included ·Video OUT ·Display Interface ·Support HD 2.0b output up to 4K 10bit @60Hz ·HD interface: 24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444) Max output resolution 4K for HD, 480i/576i for CVBS ·HD ·Compliant HD 2.0b ·Support YUV420 4k x 2k @ 60fps ·Support for 4k x 2k and 3D video formats ·Support for up to 10.2bps bandwidth ·Support HDR10 | |||||||||
Audio | Supports MP3, AAC, WMA, RM, FLAC | |||||||||
Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||||
Language | Multi-Language | |||||||||
Appliactions | ||||||||||
Online | Browse all video websites,support Netflix,Hulu,Youtube, etc. | |||||||||
Apps | Apps download freely form Google Play、Apkpure store etc. | |||||||||
Medium | Local Media playback,Support HDD, U Disck | |||||||||
Talk online | Support SKYPE ,MSN , facebook ,twitter ,QQ etc | |||||||||

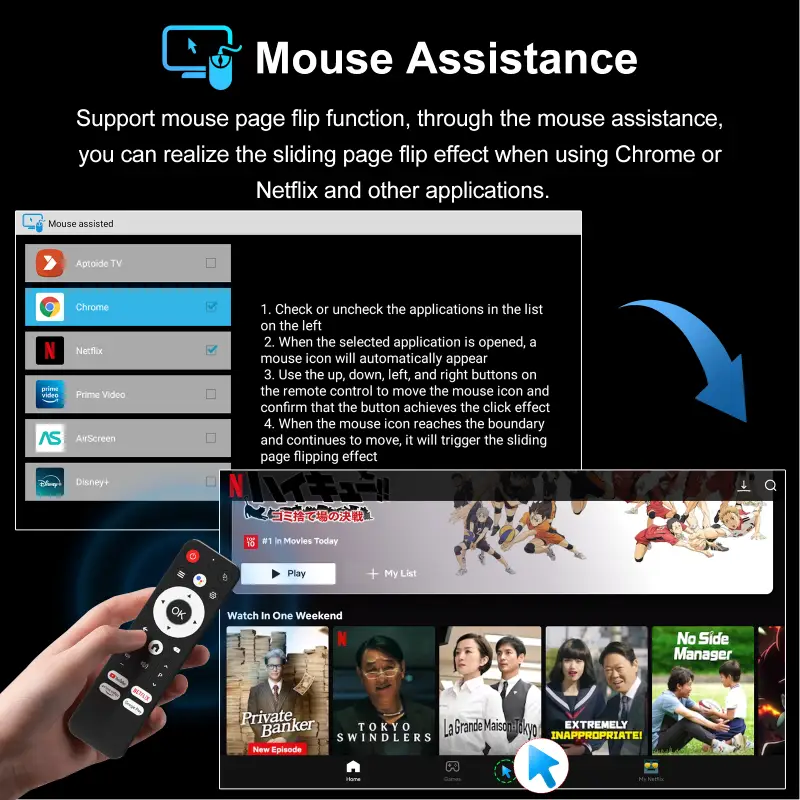

Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard | |||||||||
Packing | ||||||||||

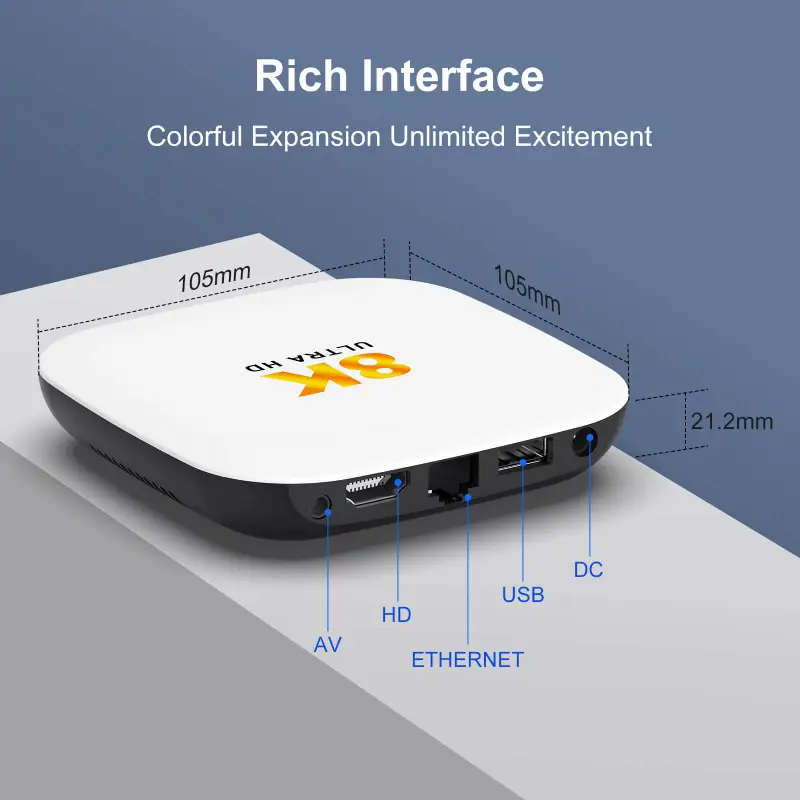

Product dimension: L105mm*W105mm*H21.2mm | ||||||||||
Unit products (G.W.): 91.3g | ||||||||||
Unit packing: L184.5mm*W116mm*H58mm | ||||||||||
Unit packing (G.W.):316g | ||||||||||
Export carton (WxHxL): L380mm*W335mm*H245mm | ||||||||||
Export carton (G.W.): 6.920kg | ||||||||||
Qty per export carton: 20pcs | ||||||||||

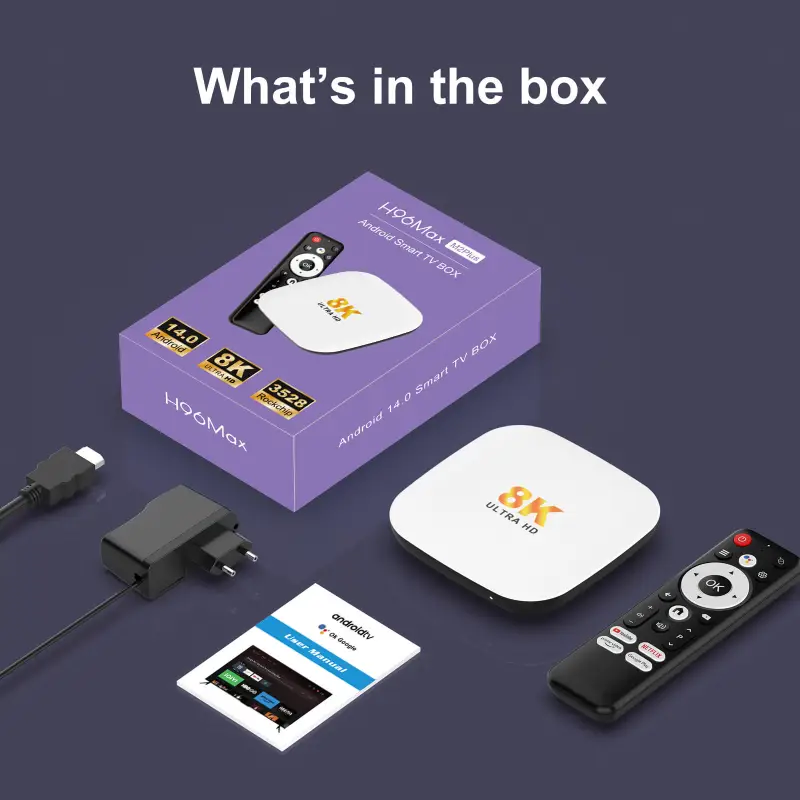

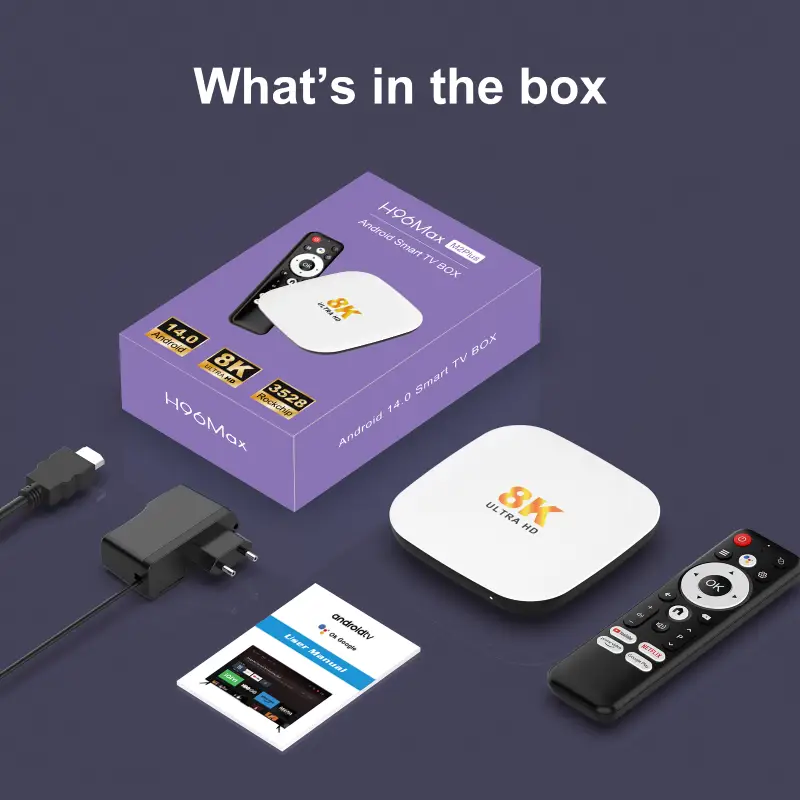

Accessories | ||||||||||
HD cable *1 | BT Remote *1 | User Manual *1 | Package box *1 | Power adapter *1 |
H96 Max M1 PLUS Android TV Box
CPU:RK3528 Quad Core ARM Cortex-A53
GPU:Mali-450 MP2
RAM:2GB/4GB
ROM:16GB/32GB/128GB
WiFi:WLAN 802.11a/b/g/n/ax
Bluetooth:BT 5.4
I/O
HD:2.0b,4K*2K UHD Output
USB:USB 2.0*2
IR Reciver:Remote Reciver Connect
DC :5V/2A
AV:480i/576i for CVBS
LAN:Ethernet:100 standard RJ-45
CPU:Quad Core ARM Cortex A53
GPU:Mali-G31 OPenGL ES3.2
Memory:2GB
Flash:8GB/16GB
WiFi:IEEE 802.11 b/g/n/ac/ax
Bluetooth:It supports Bluetooth remote control and Cannot transfer files
1*HD:support up to 4K
2*USB:2*USB2.0
1*DC:5V/2A
1*AV:audio out
LAN:Ethernet Interface:standard RJ-45
1*TF CARD:Support 4GB/8GB/16GB/32GB/64GB
CPU:Quad-Core [email protected]
GPU:Penta-core ARM® Mali™-450
Memory:2GB
Flash:8GB/16GB
WiFi:802.11 a/b/g/n/ac 2.4g+5g
Bluetooth:support
HD:support up to 4K
USB:2*USB2.0
DC:12V/1A
AV:support
LAN:Ethernet: 100 standard RJ-45

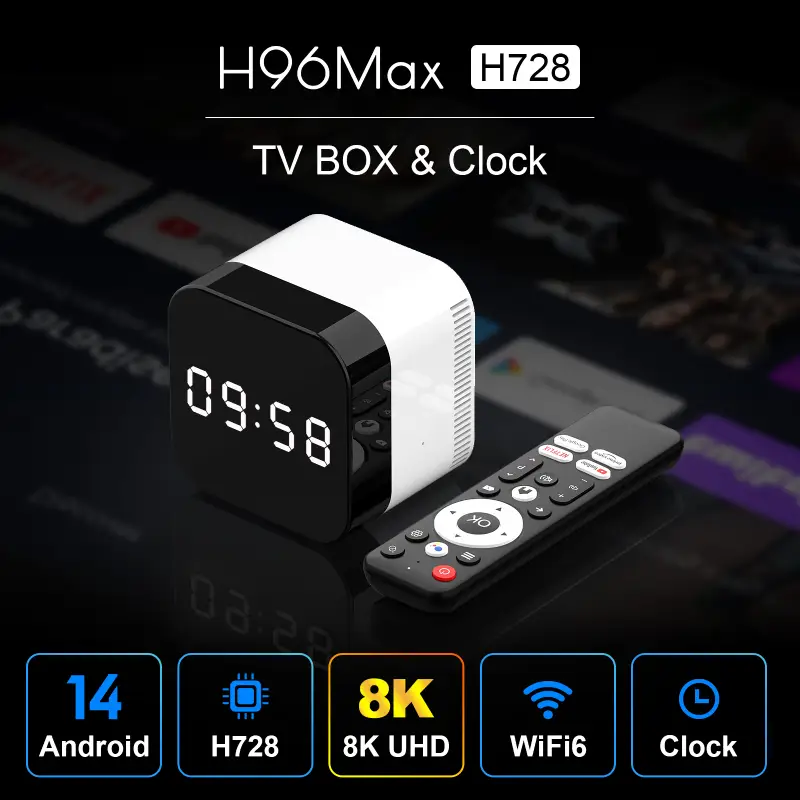

Product model: H96MAXH728
