Specifications:
CPU: RK3518 Quad core ARM Cortex-A53
GPU: ARM Mali-450
RAM: 2GB
ROM: 8GB/16GB
WiFi: WLAN 802.11a/b/g/n/ax

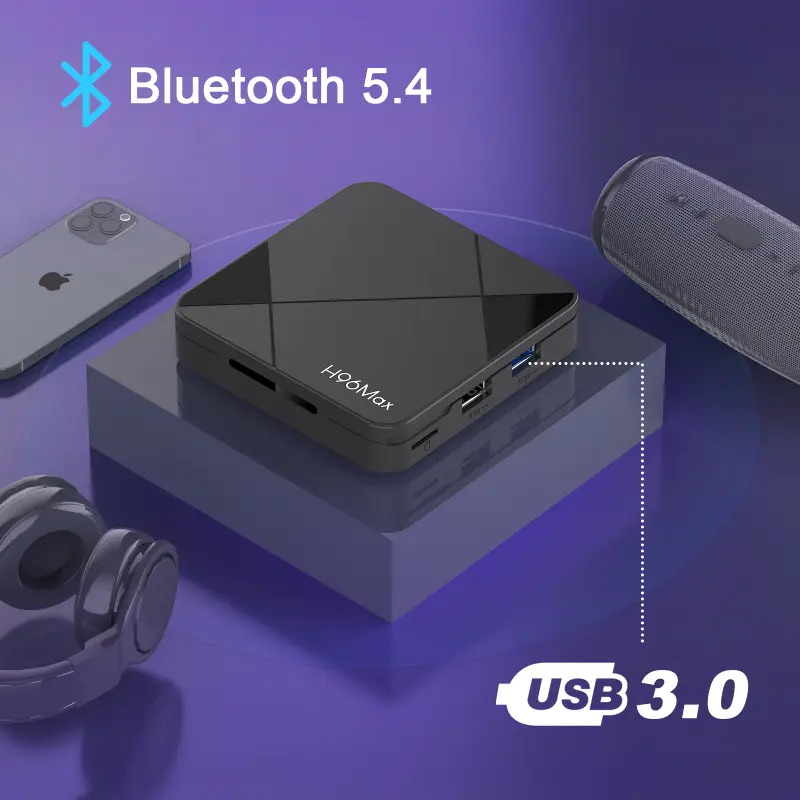

Bluetooth: BT 5.4
HD: support up to 4K
USB: 1*USB2.0/1*USB3.0
DC: 5V/2A
LAN: Ethernet:100 standard RJ-45
TF CARD: Support 4GB/8GB/16GB/32GB/64GB
AV: Audio out
OS:Audio out
H96 Max RK3518 Android TV Box | Android 14, 4K UHD,
WiFi 6, OEM Customizable
The H96 Max RK3518 Android TV Box is built to deliver next-level 4K streaming experiences with
the efficient RK3518 chipset and the latest Android 14 operating system. Featuring WiFi 6 for stable
connectivity, Bluetooth 5.4, and dual USB (2.0 + 3.0) ports, this smart TV box offers robust
performance in a compact design. With support for voice remote control and full OEM/ODM
customization options, the H96 Max RK3518 is the ideal solution for IPTV providers,
wholesalers, and system integrators worldwide.
Whether you need branded packaging, custom firmware, or localized app integration, this Android
TV Box ensures high performance and high flexibility for your target market.
.webp "H96 Max RK3518 Android TV Box with logo displayed on clean white background")
🔧 Key Features:
Android 14 Operating System
RK3518 Quad-Core Cortex-A53 CPU
4K UHD Video Playback
Dual-band WiFi 6 + Bluetooth 5.4
RAM: 2GB DDR3 | ROM: 8GB / 16GB eMMC
Supports voice remote control
USB 2.0 + USB 3.0 Ports
HDMI, AV, and LAN (100M) interfaces
Full OEM/ODM branding, UI, and packaging support
👉 Looking for more power? Check our H96 Max M2 PLUS Android TV Box with 8K decoding and
extended storage options.
📊 Technical Specifications:
Specification | Details |
CPU | RK3518 Quad-Core Cortex-A53 |
GPU | Mali-450 MP2 |
RAM / ROM | 2GB DDR3 / 8GB or 16GB eMMC |
OS | Android 14 |
Video Output | HDMI 2.0, 4K UHD @ 60fps |
Connectivity | Dual-Band WiFi 6, Bluetooth 5.4 |
Ports | USB 2.0, USB 3.0, HDMI, AV, LAN |
Power Supply | DC 5V/2A |
Certifications | CE, FCC, RoHS |
🎨 OEM/ODM Customization:

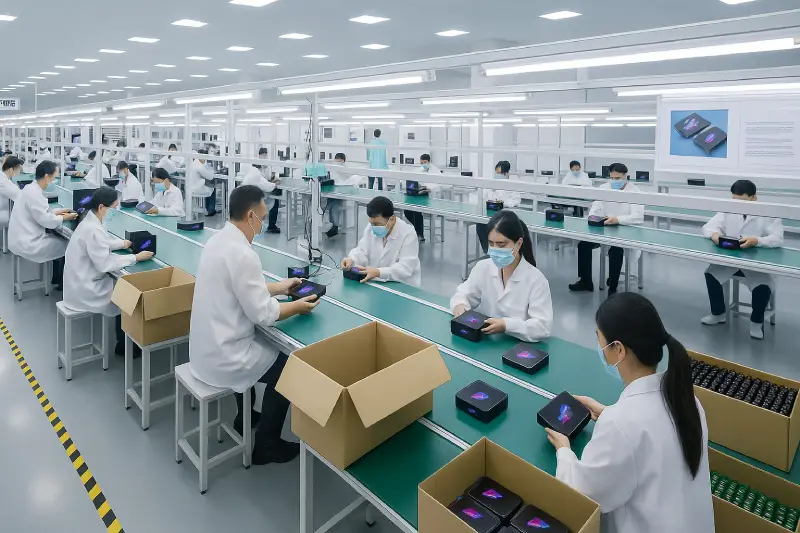

Our factory offers end-to-end OEM/ODM services tailored to your business:
Custom device logo printing
UI design and boot animation branding
Retail and bulk packaging with client branding
Pre-installed apps and content
Firmware tuning & multilingual interface support
👉 Visit our OEM Customization Page to learn more and request your private label solution.
🎯 Application Scenarios:
IPTV Subscription Services
Hotel TV Systems
E-learning and Home Theater
Digital Signage Players
Set-top Boxes for Internet TV Projects
Want to understand the difference between certified vs non-certified Android boxes? Read: What Is
a Google Certified Android TV Box?
❓ Frequently Asked Questions (FAQs):
Q1: Can I get a sample before placing a bulk order?
Yes. We support sample orders with fast global delivery. Custom logo and firmware options are
available even for samples.
Q2: Is the H96 Max RK3518 Android TV Box certified for export?
Yes, all units are CE, FCC, and RoHS certified, ensuring compliance with global safety and quality
standards.
Q3: Can I request UI or packaging customization?
Absolutely. We provide full OEM/ODM solutions including custom interface design, branding, boot
animations, and packaging.
Ready to take your business to the next level?
Contact us now for wholesale pricing, OEM/ODM support, and fast sample delivery.
Let’s build your custom Android TV Box solution together.
| System | ||||||||||
| CPU | Quad core ARM Cortex-A53 | |||||||||
| GPU | ARM Mali-450 GPU | |||||||||
| RAM | 2GB | |||||||||
| ROM | 8GB/16GB | |||||||||
| WiFi | WLAN 802.11a/b/g/n/ax | |||||||||
| Bluetooth | BT 5.4 | |||||||||
| I/O | HD | support up to 4K | ||||||||
| USB | 1*USB2.0/1*USB3.0 | |||||||||
| DC | 5V/2A | |||||||||
| LAN | Ethernet:100 standard RJ-45 | |||||||||
| TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |||||||||
| AV | Audio out | |||||||||
| Software | ||||||||||
| OS | Android 14.0 | |||||||||
| Video | Supports frame timeout interrupt, frame finish interrupt and bit stream error interrupt | |||||||||
| Error detection and concealment support for all video formats | ||||||||||
| Output data format YUV420 semi-planar, YUV400(monochrome), YUV422 is supported by H.264 | ||||||||||
| H.264/AVC BP/MP/HP profile @ level 5.1;H.264/AVC MVC: up to 4Kx2K @ 60fps | ||||||||||
| H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps | ||||||||||
| AVS2 4KX2K @60fps | ||||||||||
| MPEG-1,Main profile,up to 1080P @ 60fps | ||||||||||
| MPEG-2,SP@ML, MP@HL,up to 1080P @ 60fps | ||||||||||
| MPEG-4,ASP profile @ level 5,up to 1080P @ 60fps | ||||||||||
| AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps | ||||||||||
| AVS-P16(AVS+),up to 1080P @ 60fps | ||||||||||
| H.263, up to 576P @ 60fps | ||||||||||
| VC-1,SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps | ||||||||||
| Support video encoder for H.264,[email protected] | ||||||||||
| H.264 maximum frame rate is up to 1920x1080 @60fps | ||||||||||
| Capable of encoding HEVC Main Profile @ L4.1 High-tier | ||||||||||
| H.265 resolution and frame rate are up to 1920x1080 @60fps | ||||||||||
| JPEG encoder included | ||||||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC | |||||||||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||||
| Language | Multi-Language | |||||||||
| Appliactions | ||||||||||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |||||||||
| Apps | Apps download freely form android market etc. | |||||||||
| Medium | Local Media playback,Support HDD, U Disck | |||||||||
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |||||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard | |||||||||
| Packing | ||||||||||

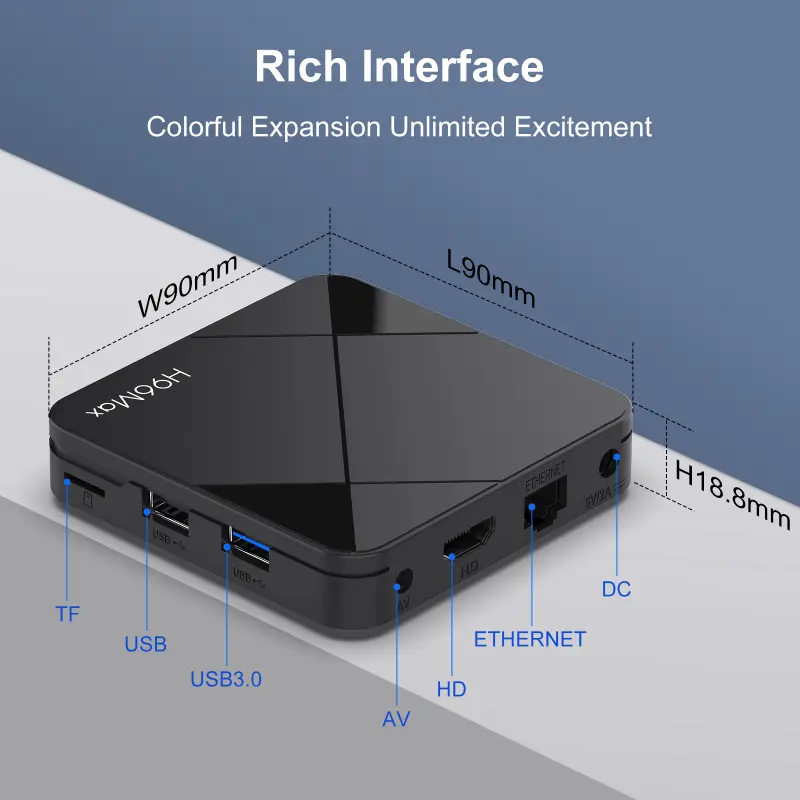

| Product dimension (WxHxL): W90mm*H18.8mm*L90mm | ||||||||||
| Unit products (G.W.): 92.2g | ||||||||||
| Unit packing(WxHxL): W47.3mm*H169mm*L134.7mm | ||||||||||
| Unit packing (G.W.): 298.6g | ||||||||||
| Export carton (WxHxL): W26.70cm*H28.5cm*L35.20cm | ||||||||||
| Export carton (G.W.):6.6kg | ||||||||||
| Qty per export carton: 20 | ||||||||||

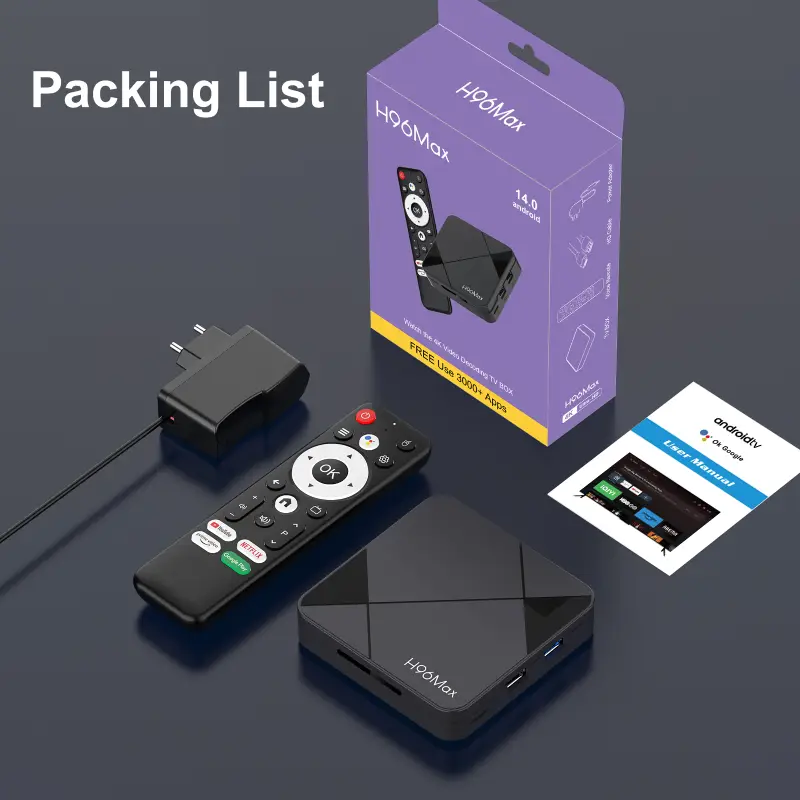

| Accessories | ||||||||||
| HD cable *1 | BT Remote *1 | User Manual *1 | Package box *1 | Power adapter *1 | ||||||
