  • H96 Max RK3528 Android TV Box
    ❤ Add to collection
  • H96 Max RK3528 Android TV Box

    CPU:Quad Core ARM Cortex A53
    GPU:Mali-450
    Memory:2GB/4GB
    Flash:16GB/32GB/ 64GB
    WiFi:IEEE 802.11 a/b/g/n/ac/ax   2.4G/5G
    Bluetooth:BT 5.0

    I/O
    1*HDMI:4K*2K UHD Output
    1*AV :Support
    1*SPDIF:Support
    2*USB:1*USB 2.0,1*USB 3.0
    1*IR Reciver:Remote Reciver Connect
    1*RJ45:Ethernet Interface;Support 100M(Optional 1000M)
    1*TF CARD:Support 4GB/8GB/16GB/32GB/64GB/128GB/256GB
    1*DC :5V/2A

    • ¥0.00
      ¥0.00
      ¥0.00
      ¥0.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.000KG
    • Quantity:
    • INQUIRY
Description

CPU:Quad Core ARM Cortex A53
GPU:Mali-450
Memory:2GB/4GB
Flash:16GB/32GB/ 64GB
WiFi:IEEE 802.11 a/b/g/n/ac/ax   2.4G/5G
Bluetooth:BT 5.0

I/O
1*HDMI:4K*2K UHD Output
1*AV :Support
1*SPDIF:Support
2*USB:1*USB 2.0,1*USB 3.0
1*IR Reciver:Remote Reciver Connect
1*RJ45:Ethernet Interface;Support 100M(Optional 1000M)
1*TF CARD:Support 4GB/8GB/16GB/32GB/64GB/128GB/256GB
1*DC :5V/2A



H96 Max RK3528 Android TV Box | Android 13, 8K UHD, WiFi 6, OEM Customization


The H96 Max RK3528 Android TV Box is your next-generation solution for smart streaming and

multimedia integration. Powered by the efficient Rockchip RK3528 chipset and running on Android

13 OS, it delivers ultra-clear 8K UHD playback, advanced H.265 decoding, and smooth multitasking.

This device is equipped with WiFi 6 and Bluetooth 5.0, offering seamless wireless connectivity and

a responsive IR controlled remote. Whether you’re a reseller, IPTV provider, or system

integrator, the H96 Max RK3528 Android TV Box offers powerful performance and extensive

OEM/ODM options tailored for global B2B markets.

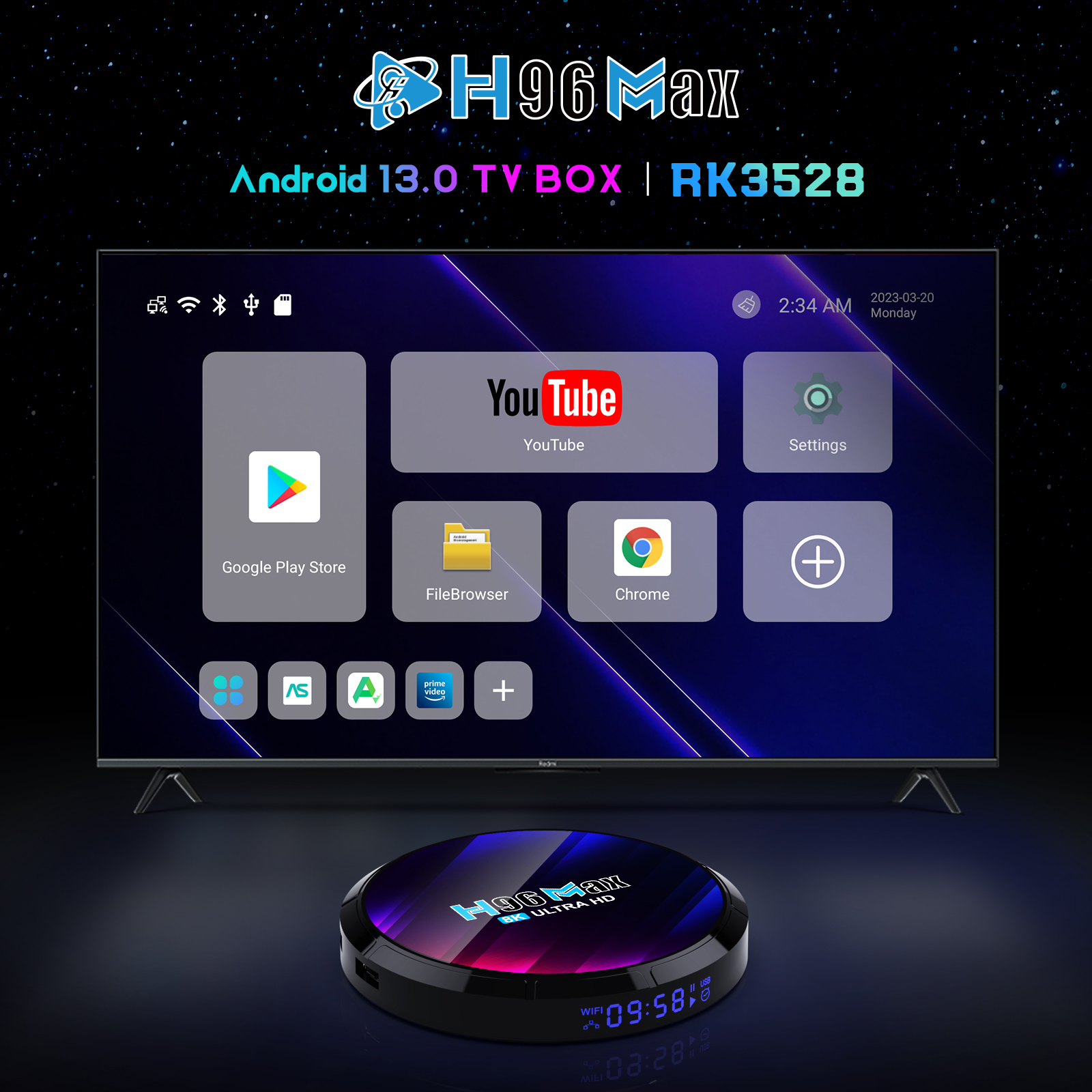

Custom Android 13 UI on H96 Max RK3528 TV Box


🧩 Key Features


  • Android 13 Operating System

  • RK3528 Quad-Core Cortex-A53 CPU

  • 8K UHD @ 24fps & H.265 Video Decoding

  • Dual USB (USB 2.0 + USB 3.0) for faster data transmission

  • WiFi 6 + Bluetooth 5.0

  • IR Remote Control

  • 2GB/4GB RAM + 16GB/32GB/64GB ROM

  • AV, HDMI 2.0b, 100M LAN (Gigabit optional)

  • OEM Logo, UI, and Packaging Customization


Want more advanced performance? Explore our H96 Max M9S Android TV Box with upgraded voice

features and enhanced memory options.


H96 Max RK3528 Android TV Box with built-in WiFi 6 support


🔧 Technical Specifications


Specification

Details

CPU

RK3528 Quad-Core Cortex-A53

GPU

Mali-450

RAM / ROM

2GB/4GB + 16GB/32GB/64GB eMMC

Operating System

Android 13

Video Output

HDMI 2.0b, 8K @ 24fps, 4K @ 60fps

Decoding

H.265/HEVC, VP9

Connectivity

WiFi 6, BT 5.0

Ports

AV, HDMI, USB 2.0, USB 3.0, LAN (100M / 1000M optional)

Power Supply

DC 5V/2A

Certifications

CE, FCC, RoHS


H96 Max RK3528 Android TV Box with quad-core processor and Android 13


🔧 OEM/ODM Customization Services


We support full-scale customization for distributors and service providers:


  • Logo and boot screen customization

  • Personalized UI and app pre-installation

  • Branded retail packaging and cartons

  • Firmware tuning and localization


👉 Request a Custom Quote Now to begin your OEM journey.

Still considering? Learn more about our Sample Order Policy and test the product before large-

scale purchase.


Factory assembly line producing H96 Max RK3528 Android TV Boxes


🎯 Application Scenarios


  • IPTV & OTT Streaming Boxes

  • Hospitality & Hotel TV Systems

  • Smart Learning and Home Theater Kits

  • Digital Signage and Public Display Solutions


📘 Need reliable post-sales help? Visit our After-Sales Technical Support page for details.

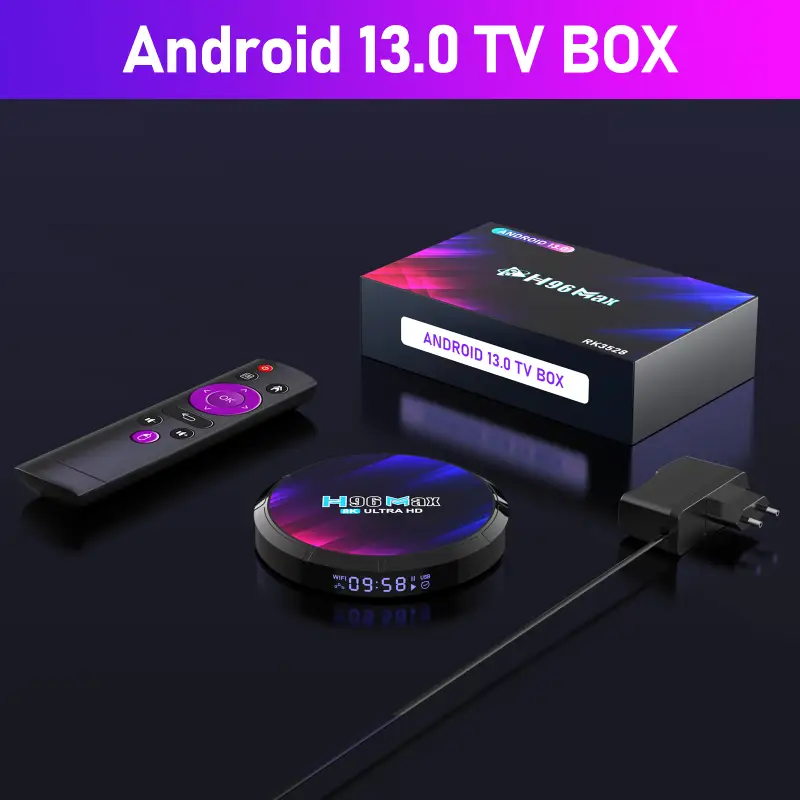

Custom OEM retail packaging for H96 Max RK3528


❓ FAQs:


Q1: Can I get a sample before bulk order?


Yes, we support sample orders with fast delivery and OEM options. Visit our Sample Request Policy

for details.

Q2: Is the H96 Max RK3528 TV Box suitable for IPTV business?


Absolutely. It supports 8K streaming, H.265 decoding, and voice control, perfect for IPTV

deployments.


Q3: Can I upgrade from 100M to 1000M LAN?


Yes. We offer both 100M and optional 1000M versions based on your project needs.


Ready to take your business to the next level?

Contact us now for wholesale pricing, OEM/ODM support, and fast sample delivery.
Let’s build your custom Android TV Box solution together.


System
CPUQuad Core ARM Cortex A53
GPUMali-450
Memory2GB/4GB
Flash16GB/32GB/ 64GB
WiFiIEEE 802.11 a/b/g/n/ac/ax   2.4G/5G
BluetoothBT 5.0
I/O1*HDMI4K*2K UHD Output
1*AV Support
1*SPDIFSupport
2*USB1*USB 2.0,1*USB 3.0
1*IR ReciverRemote Reciver Connect
1*RJ45Ethernet Interface;Support 100M(Optional 1000M)
1*TF CARDSupport 4GB/8GB/16GB/32GB/64GB/128GB/256GB

1*DC 5V/2A
Software
OSAndroid 13.0
VideoVideo Decoder
Real-time video decoder of MPEG-1, MPEG-2, MPEG-4  H.263, H.264/AVC, H.265/HEVC, MVC VC-1 AVS, AVS+,AVS2
    H.265 HEVC/MVC Main10 L6.1 : 8K@25fps (7680x4320)
H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps
 H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
 AVS2 4KX2K @60fps
 MPEG-1, Main profile, up to 1080P @ 60fps
 MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps
 MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps
 AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps
 AVS-P16 (AVS+), up to 1080P @ 60fps
 H.263, up to 576P @ 60fps
 VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps

Display Interface
 Support HDMI 2.0b output up to 4K 10bit @60Hz
 TV interface: TV encoder 10bit out for DAC
 HDMI interface:
 24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444)
 Max output resolution 4K for HDMI, 480i/576i for CVBS
 Support 1 cluster layer, 4 smart layer
 Support HDR10, HLG HDR, Vivid HDR
AudioSupports MP3, AAC, WMA, RM, FLAC
ImageHD JPEG、BMP、GIF、PNG、TIF
LanguageMulti-Language
Appliactions
OnlineBrowse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
AppsApps download freely form android market、amazon app store etc.
MediumLocal Media playback,Support HDD, U Disck ,TF Card .
Talk onlineSupport  SKYPE video  call ,MSN , facebook ,twitter ,QQ  etc
OthersSupport Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Packing:
Qty per export carton:20PCS
Accessories :







1、HDMI cable  *1
2、IR Remote *1
3、User Manual *1
4、Package box  *1
5、Power adapter  *1
