  • H96 Max S905L3 Android TV Box
    ❤ Add to collection
  • H96 Max S905L3 Android TV Box

    CPU:Quad-Core [email protected]
    GPU:Penta-core ARM® Mali™-450
    Memory:2GB
    Flash:8GB/16GB
    WiFi:802.11 a/b/g/n/ac 2.4g+5g
    Bluetooth:support
    HD:support up to 4K
    USB:2*USB2.0
    DC:12V/1A
    AV:support
    LAN:Ethernet: 100 standard RJ-45

    • ¥0.00
      ¥0.00
      ¥0.00
      ¥0.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.000KG
    • Quantity:
    • INQUIRY
Description

CPU:Quad-Core [email protected]
GPU:Penta-core ARM® Mali™-450
Memory:2GB
Flash:8GB/16GB
WiFi:802.11 a/b/g/n/ac 2.4g+5g
Bluetooth:support
HD:support up to 4K
USB:2*USB2.0
DC:12V/1A
AV:support
LAN:Ethernet: 100 standard RJ-45



✅ H96 Max S905L3 Android TV Box | Android 14, 4K UHD,


Dual-Band WiFi, Voice Remote


The H96 Max S905L3 Android TV Box is designed to deliver high-performance 4K UHD media

streaming with the reliable Amlogic S905L3 chipset and Android 14 operating system. With support

for dual-band 2.4G/5G WiFi, Bluetooth 5.4, and voice control, this Android TV box is a cost-effective

yet powerful solution for IPTV operators, wholesalers, and system integrators. Whether you're

launching your own brand or upgrading your product lineup, the H96 Max S905L3 Android TV Box

provides seamless OEM/ODM customization and modern smart TV functionality.


📌 Looking for more entry-level options? Check out our H96 Max H313 Android TV Box designed

for high-volume deployments with competitive pricing.

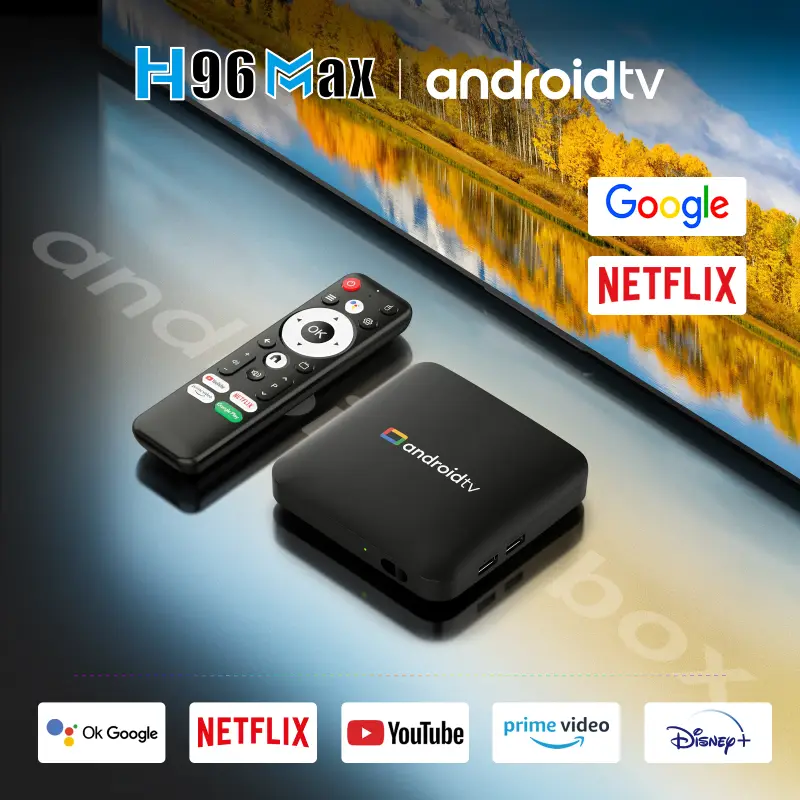

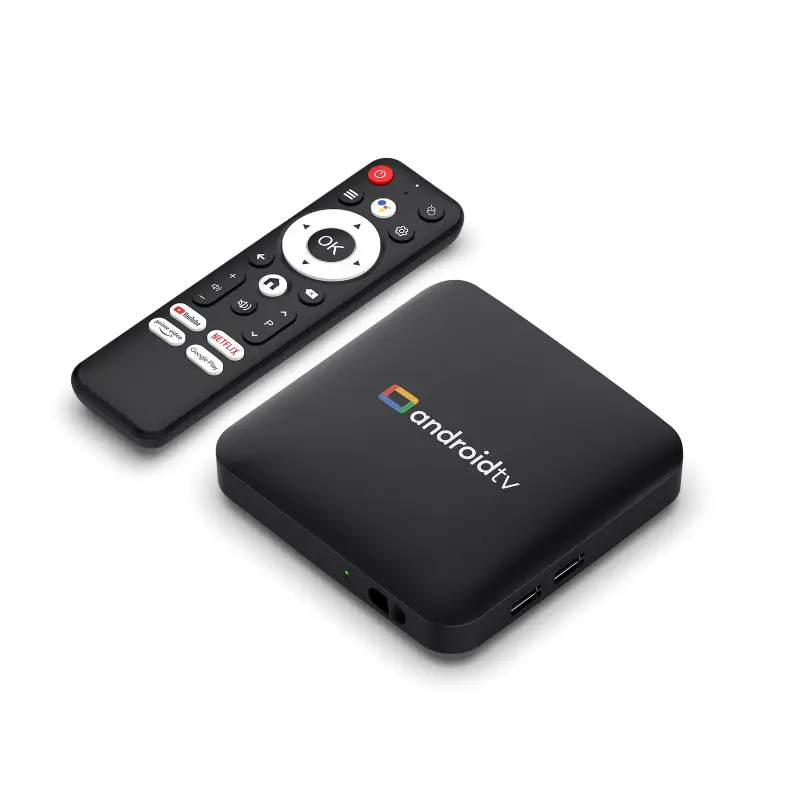

Front view of H96 Max S905L3 Android TV Box with logo on white background


🔑 Key Features:


  • Android 14 OS with OTA update support

  • Amlogic S905L3 Quad-Core ARM Cortex-A55

  • 4K UHD video decoding @ 60fps

  • Dual-Band 2.4G/5G WiFi + Bluetooth 5.4

  • 2GB DDR RAM + 8GB / 16GB eMMC Storage

  • Supports voice remote control

  • 2× USB 2.0, HDMI, AV, 100M LAN

  • 12V/1A Power Input

  • CE / FCC / RoHS Certified

  • Full OEM/ODM customization available


Want to understand the core tech? Read our guide: What Is a TV Box and How Does

It Work?

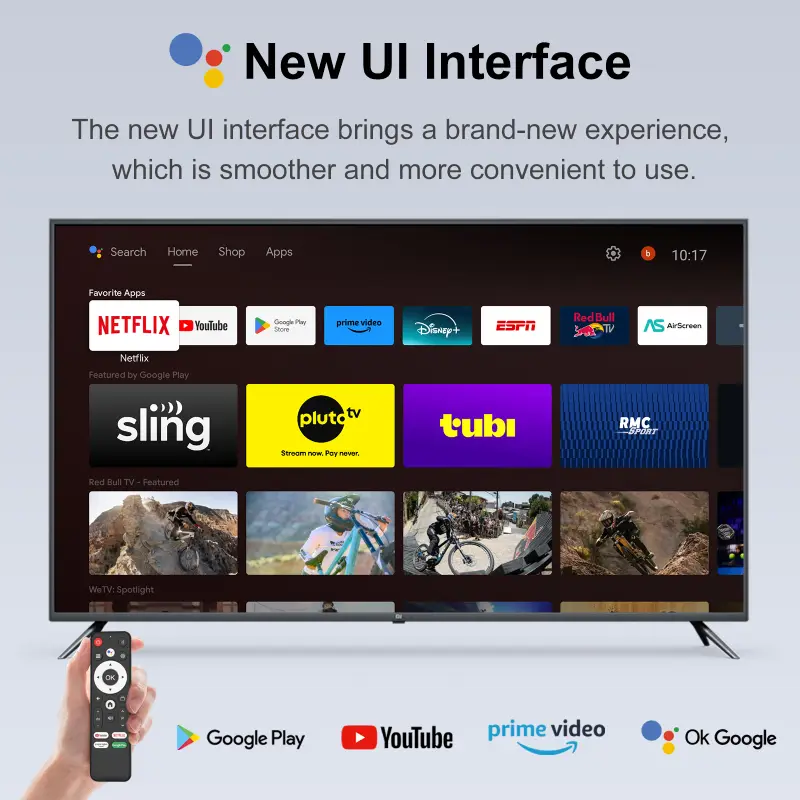

H96 Max S905L3 Android TV Box UI showing 4K streaming apps and customizable layout


📊 Technical Specifications:


Specification

Details

CPU

Amlogic S905L3 Quad-Core [email protected]

GPU

Penta-core ARM® Mali™-450

RAM / ROM

2GB DDR3 / 8GB or 16GB eMMC

OS

Android 14

Video Output

HDMI 2.0, 4K UHD @ 60fps

Connectivity

Dual-Band WiFi (2.4G/5G), BT 5.4

Ports

2× USB 2.0, HDMI, AV, LAN (100M)

Power Supply

12V/1A DC

Certifications

CE, FCC, RoHS

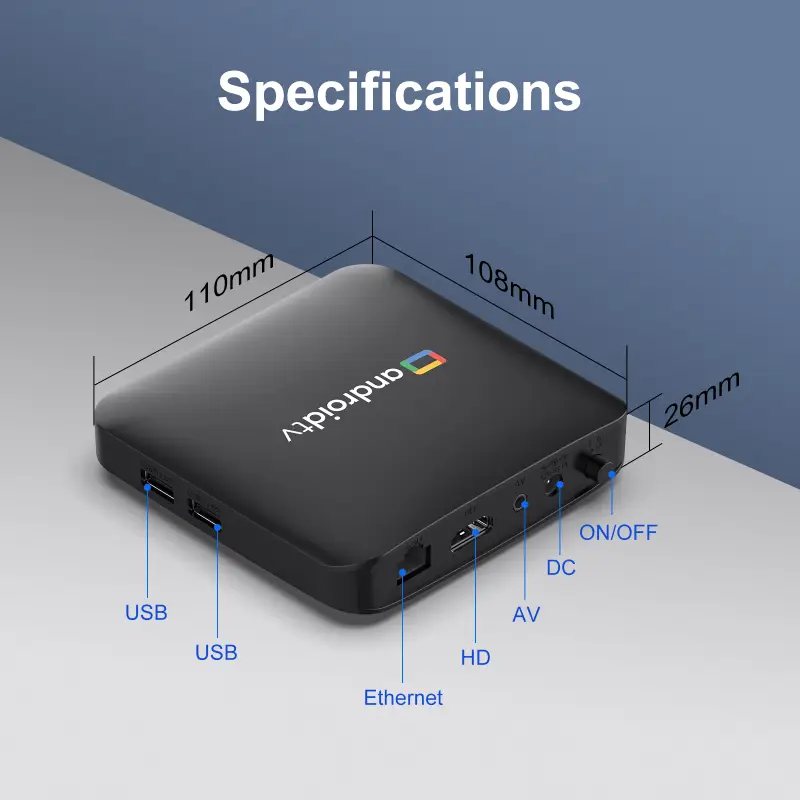

Rear ports view of H96 Max S905L3 TV Box showing USB, HDMI, and Ethernet


🛠 OEM/ODM Customization Services


We offer professional B2B customization options, including:


  • Device & remote logo printing

  • Boot animation & custom UI

  • Retail packaging design

  • Pre-installed APKs or IPTV apps

  • Language localization & firmware tuning


➡️ Want full brand control? Visit our Custom Android TV Box Packaging page to explore more.


Workers assembling H96 Max S905L3 Android TV Boxes in factory setting


🎯 Application Scenarios


  • IPTV & OTT Streaming Boxes

  • Education & E-learning Devices

  • Hotel & Hospitality TV Solutions

  • Smart Home Entertainment Systems

  • Digital Signage & Retail Media Players


✅ Learn how OEM Android TV Boxes help scale your business efficiently and affordably.


Custom packaging options for OEM H96 Max S905L3 Android TV Box


❓ Frequently Asked Questions


Q1: Is the H96 Max S905L3 Android TV Box compatible with all TVs?


Yes, it works with any TV that has an HDMI port and supports 4K or 1080p resolution.


Q2: Can I order samples with my logo and UI?


Yes. Sample orders with partial customization are available. Visit our Sample Request page for

more info.


Q3: How do I get a quote for OEM bulk orders?


Please Request a Custom Quote to get started with your project.


System
CPUQuad-Core [email protected]
GPUPenta-core ARM® Mali™-450
Memory2GB
Flash8GB/16GB
WiFi802.11 a/b/g/n/ac 2.4g+5g
Bluetoothsupport
I/OHDsupport up to 4K
USB2*USB2.0
DC12V/1A
AVsupport
LANEthernet: 100 standard RJ-45
Software
OSAndroid 14.0
videoH.265 HEVC [email protected] up to 4Kx2k@30fps
H.264 AVC [email protected] up to 4Kx2k@30fps
H.264 MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps(ISO-11172)
RealVideo 8/9/10 up to 1080P
WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlinited pixel resolution decoding(ISO/IEC-10918)
supports JPEG thumited,scaling,rotation and transition effects
AudioSupports MP3, AAC, WMA, RM, FLAC
ImageHD JPEG、BMP、GIF、PNG、TIF
LanguageMulti-Language
Appliactions
OnlineBrowse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
AppsApps download freely form android market、amazon app store etc.
MediumLocal Media playback,Support HDD, U Disck
Talk onlineSupport  SKYPE video  call ,MSN , facebook ,twitter ,QQ  etc
OthersSupport Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Packing
Product dimension (WxHxL): W107.88mm*H25.952mm*L110.00mm
Unit products (G.W.): 122g
Unit packing(WxHxL): W125mm*H52mm*L187mm
Unit packing (G.W.): 365g
Export carton (WxHxL): W395mm*H273mm*L540mm
Export carton (G.W.): 15500g
Qty per export carton: 40

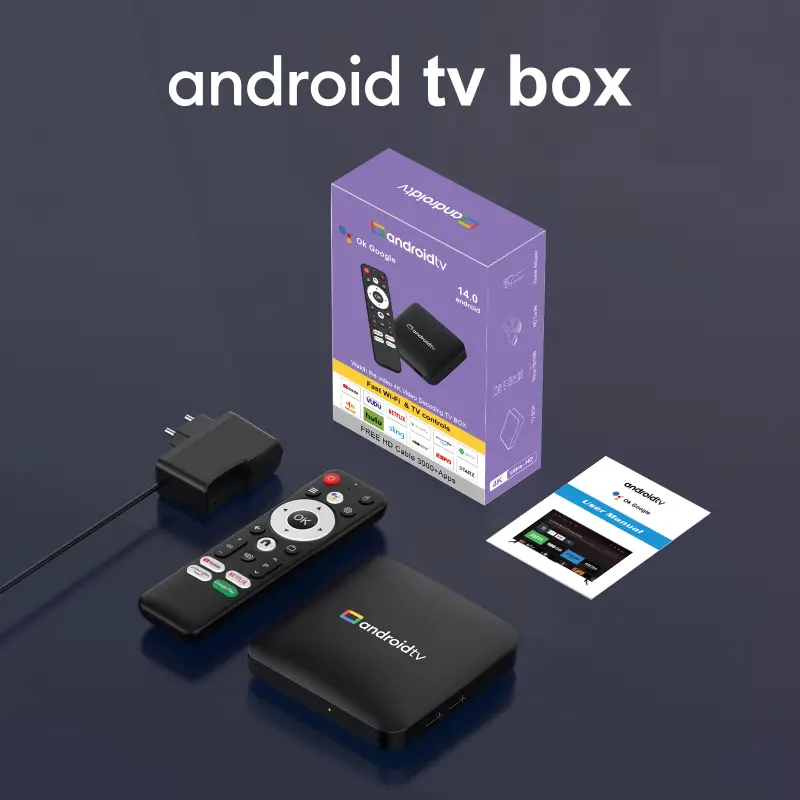

Accessories
HD cable *1Remote *1User Manual *1Package box *1Power adapter *1
