Specifications:
CPU: Amlogic S905Y4 ARM Quad 64-bit Cortex-A35
GPU: ARM Mali-G31 MP2 GPU/OpenGL ES3.2,Vulkan1.1 and OpenCL2.0
RAM: 2GB/4GB
ROM: 16GB/32GB/64GB
HDR: HDR 10, HLG, HDR 10+
OS: Android 11
DRM: Widevine,Playready
Resolution: Up to 4K60fps
Ethernet: RJ45 Interface 10M/100M adaptive
Wi-Fi: 2 x 2 MINO Wi-Fi 2.4GHz/5GHz 802.11a/b/g/n/ac
Bluetooth: BT 5.0
Digital Video:HDMI 2.1 with HDCP
Micro TF: Support
USB:USB2.0*2
Micro SD:Support
Power Interface:DC In

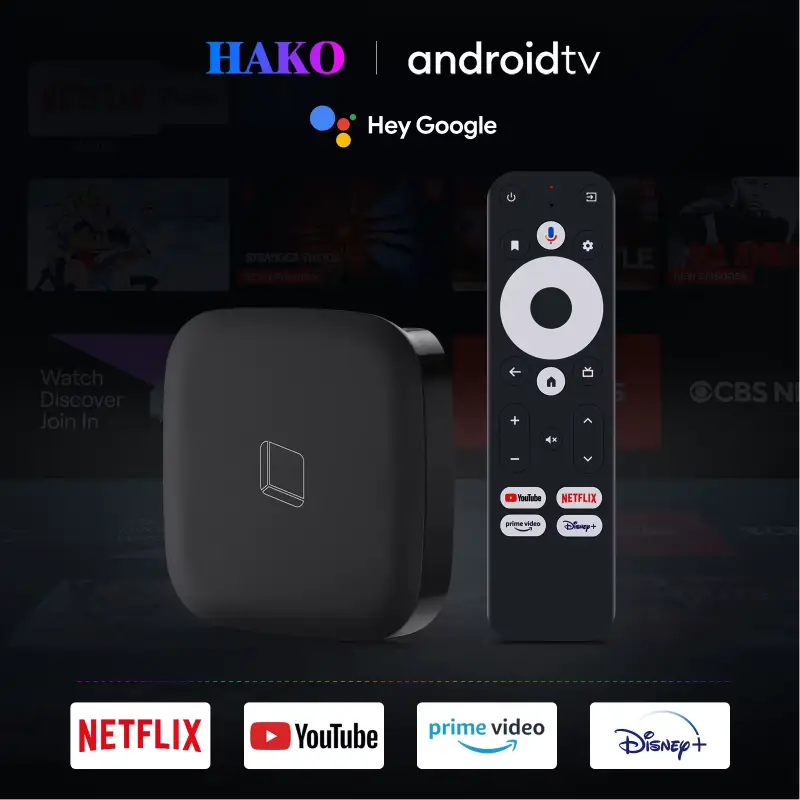

The Hako Pro TV Box is a premium Google Certified Android TV device powered by the advanced
Amlogic S905Y4 chipset. Running on Android 11, this smart TV box supports 4K UHD streaming,
Dolby Audio, and dual-band Wi-Fi with 2x2 MIMO technology. With integrated Widevine and
PlayReady DRM, this model is perfect for OTT platforms, IPTV streaming, and commercial
deployment in hotels or hospitality solutions. Whether you're seeking flawless AV1 video decoding,
fast booting, or smooth voice command navigation, the Hako Pro TV Box delivers an exceptional
user experience in a compact and certified package.
Unlike customizable OEM models such as the H96 Max M9 TV Box, the Hako Pro TV Box comes as a
fully pre-configured, ready-to-deploy Android TV solution—perfect for global resellers and system
integrators who need a compliant and reliable product for mass distribution.
Google Certified Android TV OS (Android 11)
Amlogic S905Y4 Quad-Core 64-bit CPU
AV1 video decoding with 4K UHD output
Dolby Audio & Dolby Digital Plus support
DRM Support: Widevine Level 1, Microsoft PlayReady
RAM: 2GB/4GB | ROM: 16GB/32GB/64GB
Dual-band Wi-Fi (2x2 MIMO) + Bluetooth 5.0
Voice-enabled Bluetooth remote control
USB 2.0 x 2, SD Card Slot, HDMI, AV Port, 100M LAN
Compact design with 12V/1A power supply
Not available for OEM/ODM customization
Specification | Details |
CPU | Amlogic S905Y4 Quad-Core Cortex-A35 |
RAM / ROM | 2GB/4GB DDR3 / 16GB/32GB/64GB eMMC |
OS | Android 11 Google Certified |
Video Output | HDMI 2.1, 4K UHD @ 60fps, AV1 Support |
Audio | Dolby Audio / Dolby Digital Plus |
DRM | Widevine L1, PlayReady |
Connectivity | Dual WiFi (2.4G/5G), BT 5.0 |
Ports | USB 2.0 x 2, SD Card, AV, HDMI, LAN 100M |
Remote Control | Bluetooth Voice Remote Included |
Power Supply | 12V / 1A |
Certification | Google Certified, CE, FCC, RoHS |

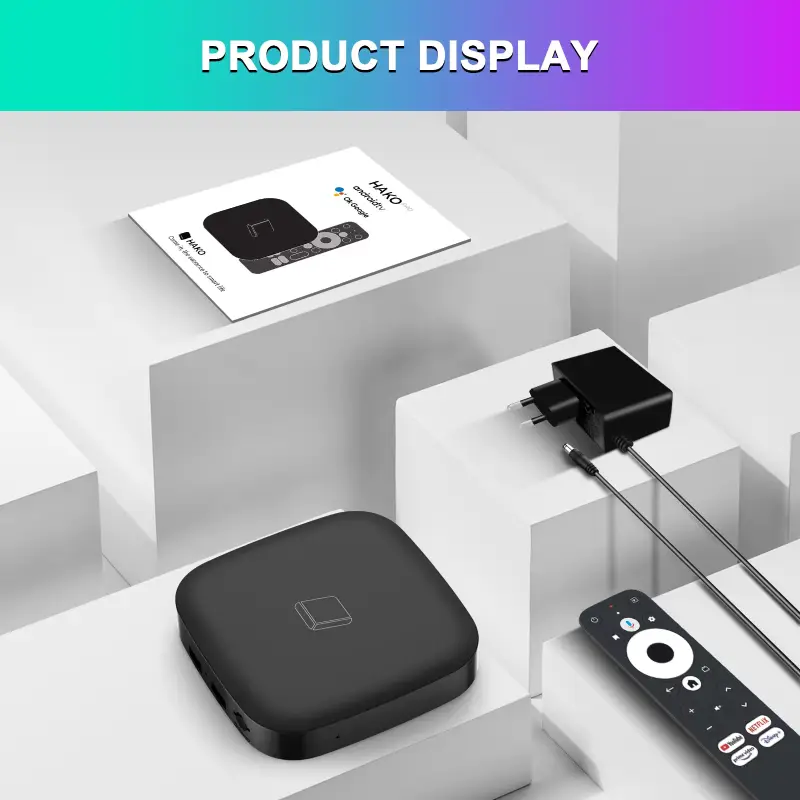

1 × Hako Pro TV Box (Google Certified)
1 × Bluetooth Voice Remote
1 × HDMI Cable
1 × Power Adapter (12V/1A)
1 × User Manual
OTT streaming services requiring Google DRM
Smart TV upgrades for hospitality systems
Educational or enterprise video platforms
Commercial digital signage or media hubs
Want to learn more about compliance? Read our article: What Is Google Certified Android TV
This product does not support OEM/ODM customization
Ships with pre-installed Google TV interface and Google Assistant
Optimized for mainstream apps like Netflix, YouTube, Disney+, etc.
Yes, it is fully Google Certified with Android TV OS and DRM support (Widevine & PlayReady).
This model does not support OEM/ODM customization. For custom projects, we recommend the
H96 Max M9 TV Box.
We provide real-time tracking information via email after dispatch. See our How can I track my
order after shipment? page.
We offer factory-direct pricing, fast delivery, and professional support.
Send us your inquiry today and get full product details and wholesale quote.
Hardware Specifications | ||||||||||||||
SOC | Amlogic S905Y4 | |||||||||||||
CPU | ARM Quad 64-bit Cortex-A35 | |||||||||||||
DRAM | DDR4 2GB 4GB | |||||||||||||
Flash | eMMC 16GB, 32GB,64GB | |||||||||||||
Graphics | ARM Mali-G31 MP2 GPU/OpenGL ES3.2,Vulkan1.1 and OpenCL2.0 | |||||||||||||
HDR | HDR 10, HLG, HDR 10+ | |||||||||||||
◆OS | Android™ 11 | |||||||||||||
DRM | Widevine,Playready | |||||||||||||
Resolution | 4K60fps | |||||||||||||
Ethernet | RJ45 Interface 10M/100M adaptive | |||||||||||||
Wi-Fi | 2 x 2 MINO Wi-Fi 2.4GHz/5GHz 802.11a/b/g/n/ac | |||||||||||||
Bluetooth | 5.0 | |||||||||||||
Video Codes | ·AV1 [email protected] up to 4K*2K@60fps ·VP9 Profile-2 up to 4K*2K@60fps ·H.265/HEVC [email protected] up to 4K*2K@60fps ·H.264/AVC [email protected] up to 4K*2K@30fps ·MPEG-2 MP/HL up to 1080P@60fps ·Other codecs on request | |||||||||||||
Audio Codes | ·AAC-LC & AAC-HE ·MPEG-1 Layers 1,2,3 ·Dolby Audio and Dolby Digital Plus ·Other codecs on request | |||||||||||||
Container | *.mkv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.mp3 and *.ogg | |||||||||||||
Power Supply | External 12V1A | |||||||||||||
Power Consumption | 12W Max | |||||||||||||
Operating Temperature | 0℃ to 40℃ | |||||||||||||
Operating Humidity | 5%-85% Non-condensing | |||||||||||||
Size(W*D*H) | 110mm x 110mm x 26mm | |||||||||||||
Digital Video | HDMI 2.0 with HDCP | |||||||||||||
Micro TF | Support | |||||||||||||
Network | RJ45 LAN | |||||||||||||
Peripheral Interface | 2 x USB2.0 | |||||||||||||
Power Interface | DC in | |||||||||||||
Dolby Audio | Support | |||||||||||||
OtherOther | IR Receiver, Power Indicator, Reset | |||||||||||||
Package Contents | ||||||||||||||
1 x Power Adaptor | 1 x HDMI 2.0 Cable | 1 x Quick Guide | 1 x STB Debice | 1 x Bluetooth and IR Remote Control | ||||||||||
