CPU:RK3528 Quad Core ARM Cortex-A53
GPU:Mali-450 MP2
RAM:2GB/4GB
ROM:16GB/32GB/128GB
WiFi:WLAN 802.11a/b/g/n/ax
Bluetooth:BT 5.4
I/O
HD:2.0b,4K*2K UHD Output
USB:USB 2.0*2
IR Reciver:Remote Reciver Connect
DC :5V/2A
AV:480i/576i for CVBS
LAN:Ethernet:100 standard RJ-45

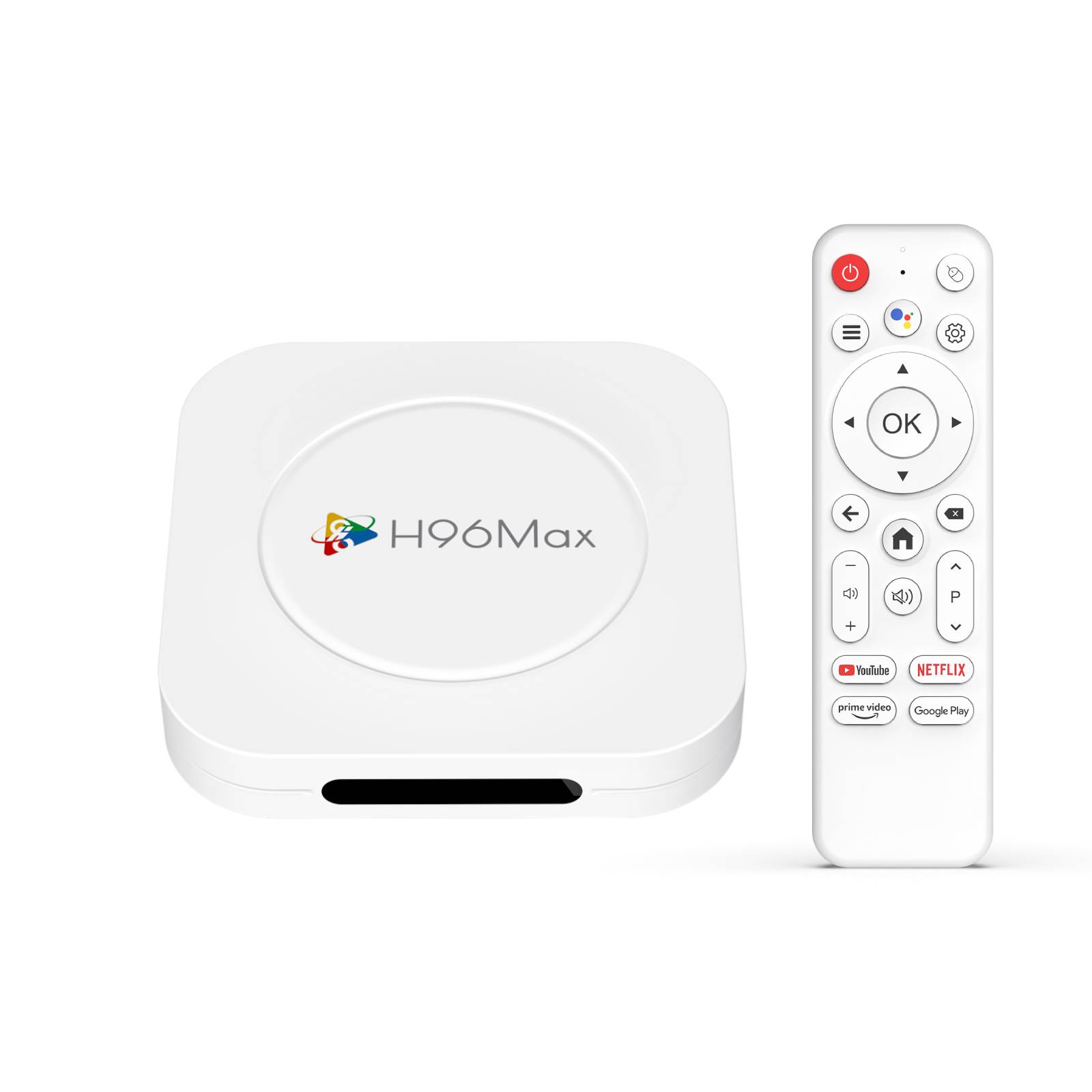

The H96 Max M1 PLUS TV Box is designed for users who demand speed, clarity, and smart control.
Powered by the new Rockchip RK3528 chipset, it supports Android 14, 8K decoding, WiFi 6, and
Bluetooth 5.4. Choose from multiple configurations: 2GB/4GB RAM and 16GB/32GB/128GB ROM.
With strong cooling design and multiple ports including HDMI 2.0b, USB 2.0×2, and DC input, this
compact smart box android brings smooth and flexible home entertainment.
Running the latest Android 14, the M1 PLUS TV Box offers an improved UI, stronger privacy
controls, and better compatibility with modern apps. The Android 14 TV box gives you access to
the Google Play ecosystem and supports OTA updates, making it a future-proof smart TV solution.
You’ll experience faster navigation, smoother streaming, and better control over your digital
experience.
At the heart of the M1 PLUS TV Box is the Rockchip RK3528 processor. This quad-core CPU
delivers smooth system performance with optimized power consumption, making it perfect for 8K
video decoding and multitasking. Whether switching between apps or streaming high-res content,
this smart box android provides the stable and responsive experience users expect from a modern
Android 14 TV box.
Enjoy ultra-clear video with native support for 8K decoding. The M1 PLUS TV Box handles
demanding resolutions easily, ensuring crisp images even on large screens. Combined with HDMI
2.0b output, you’ll experience smooth visuals, richer colors, and deeper contrast. For those who
demand top-tier playback, this Android 14 TV box brings cinema-level performance to your living
room.
The M1 PLUS TV Box includes a Bluetooth voice remote that supports Google Assistant voice
search. Control your TV, search for content, and launch apps using just your voice. With mouse
mode built-in, you can toggle between standard navigation and pointer mode to control apps like
Netflix and Prime Video more easily. A perfect match for any Android 14 TV box experience.
Absolutely. An Android TV box like the M1 PLUS TV Box transforms any regular TV with an HDMI
port into a smart TV. You get access to thousands of apps from Google Play, voice control, screen
mirroring, and 8K streaming. With the Android 14 TV box, you can browse the web, watch Netflix,
or mirror your phone—all from your couch. The M1 PLUS is your affordable solution to smart living.
Enjoy the latest ATV (Android TV) interface on the M1 PLUS TV Box, designed for larger screens.
With a clean layout, smart recommendations, and voice support, users can easily browse apps or
access content. Whether you're launching Prime Video or switching to screen mirroring, this
smart box android is intuitive, fast, and beautifully designed for TV use.

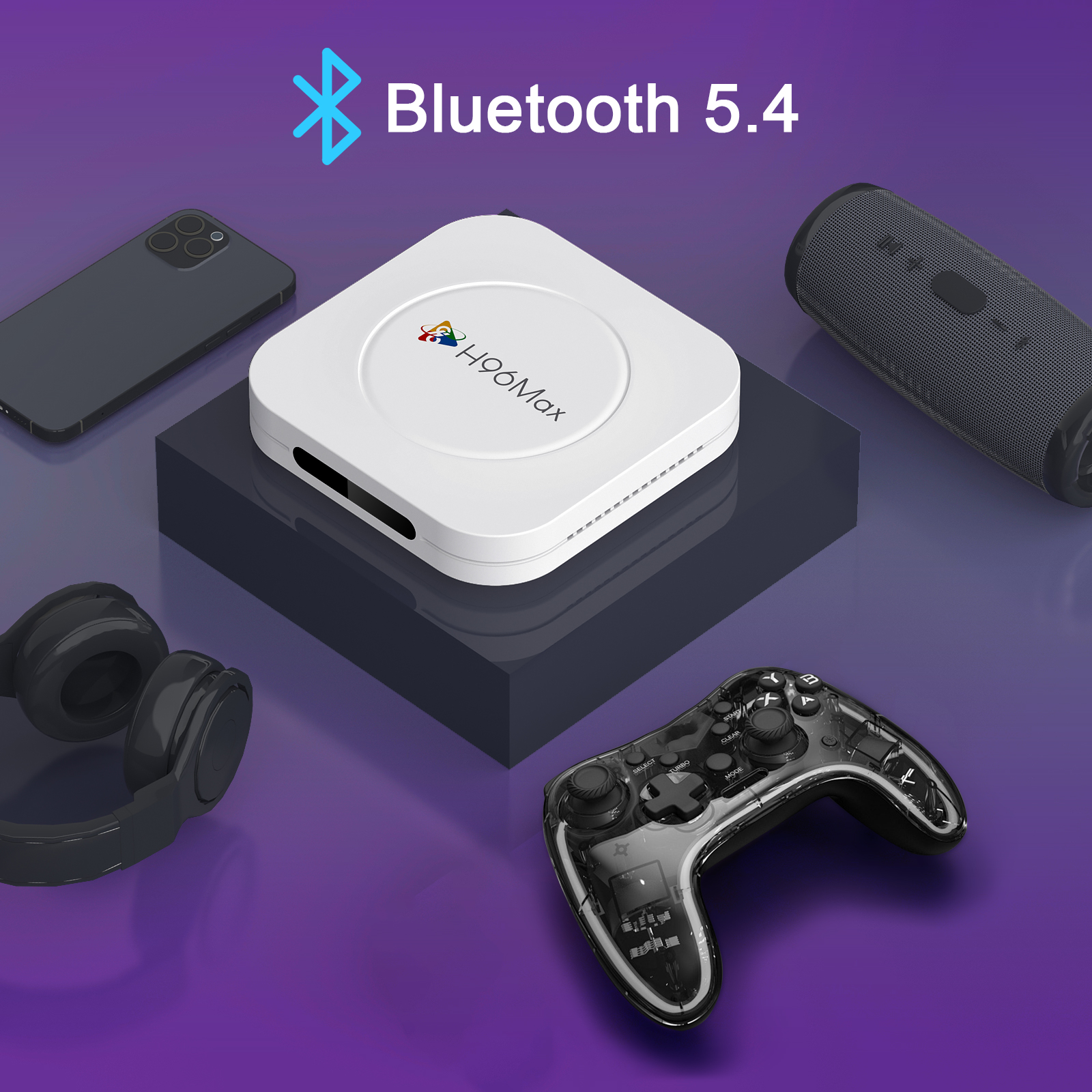

The M1 PLUS TV Box comes equipped with WiFi 6, providing faster, more stable internet
connections even in crowded networks. Meanwhile, Bluetooth 5.4 enables quick pairing with
wireless remotes, speakers, or keyboards. These features ensure your smart box android is ready
for modern streaming, gaming, and smart home integration.

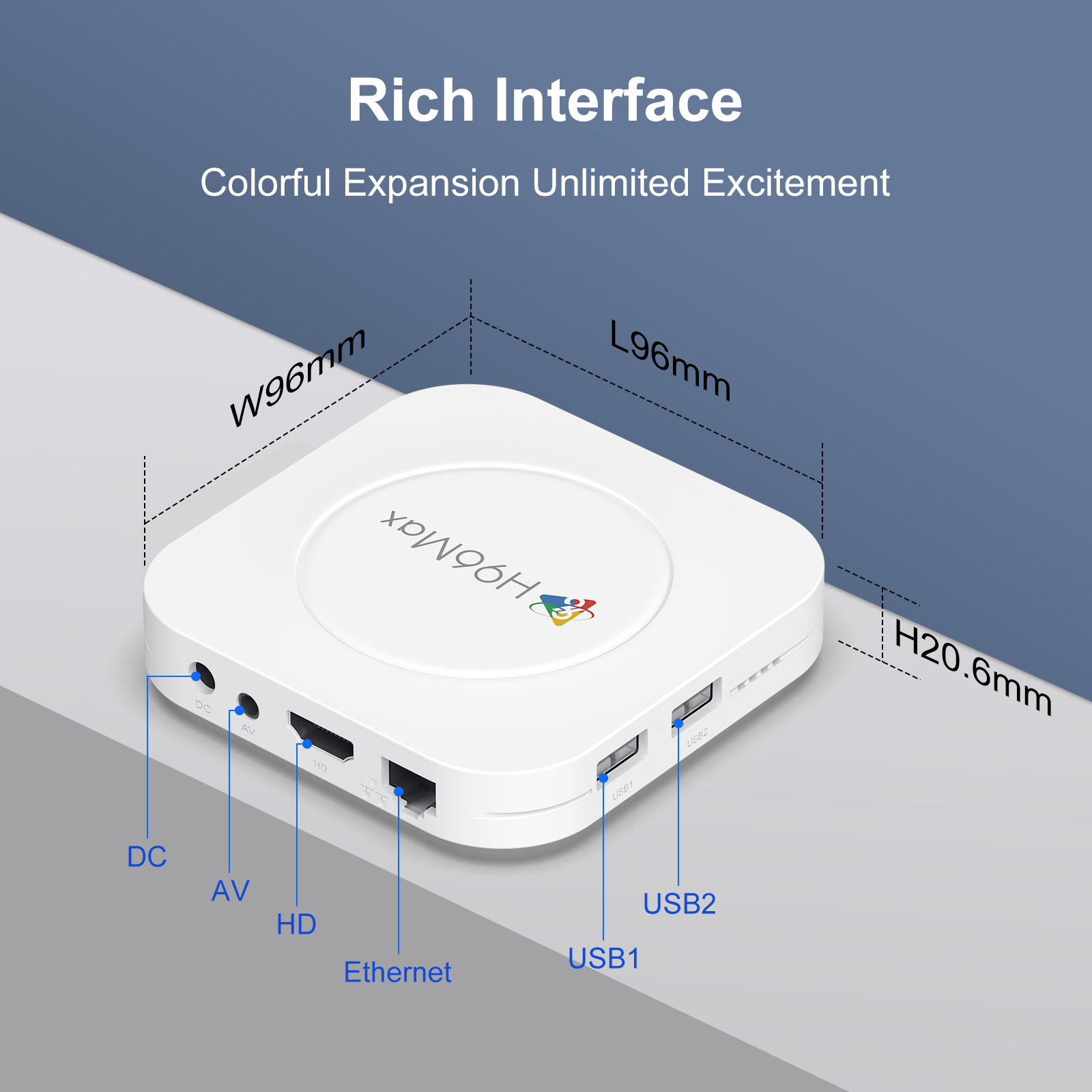

With HDMI 2.0b, dual USB 2.0, DC input, the M1 PLUS TV Box offers easy connectivity to TVs,
external drives, or peripherals. Screen mirroring is also supported. These ports make this smart
box android ideal for home setups, classrooms, or business displays.
The M1 PLUS TV Box supports full Google Play Store access and wireless screen casting, allowing
you to project videos, presentations, or games directly from your phone. As a powerful Android 14
TV box, it integrates perfectly with your Google ecosystem, making it a complete digital hub for
entertainment, learning, or work.
Designed with a high-efficiency cooling system, the M1 PLUS TV Box stays cool even during heavy
streaming or multitasking. This ensures consistent performance and extends hardware lifespan.
Whether using it for 8K streaming or gaming, this Android 14 TV box maintains its power without
overheating.
Any TV with an HDMI port is compatible with the M1 PLUS TV Box. Whether you're using an old
flat-screen or a brand-new 8K display, this smart box android connects quickly and easily. The
Android 14 TV box system is screen-independent, working perfectly with LED, OLED, plasma, and
even projector setups—just plug and play.
System | ||||||||||
CPU | RK3528 Quad Core ARM Cortex-A53 | |||||||||
GPU | Mali-450 MP2 | |||||||||
RAM | 2GB/4GB | |||||||||
ROM | 16GB/32GB/128GB | |||||||||
WiFi | WLAN 802.11a/b/g/n/ax | |||||||||
Bluetooth | BT 5.4 | |||||||||
I/O | HD | 2.0b,4K*2K UHD Output | ||||||||
USB | USB 2.0*2 | |||||||||
IR Reciver | Remote Reciver Connect | |||||||||
DC | 5V/2A | |||||||||
AV | 480i/576i for CVBS | |||||||||
LAN | Ethernet:100 standard RJ-45 | |||||||||
Software | ||||||||||
OS | Android 14.0 | |||||||||
Video | ·Video Decoder ·Real-time video decoder of MPEG-1, MPEG-2, MPEG-4 H.263, H.264/AVC, H.265/HEVC, MVC VC-1 AVS, AVS+,AVS2 ·MMU Embedded ·Supports frame timeout interrupt, frame finish interrupt and bit stream error interrupt ·Error detection and concealment support for all video formats ·Output data format YUV420 semi-planar, YUV400(monochrome), YUV422 is supported by H.264 ·H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K@60fps and 8K*4K@23fps ·H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K@60fps and 8K*4K@23fps ·AVS2 4KX2K @60fps ·MPEG-1, Main profile, up to 1080P@60fps ·MPEG-2, SP@ML, MP@HL, up to 1080P@60fps ·MPEG-4, ASP profile @ level 5, up to 1080P@60fps ·AVS, Jizhun profile @ level 6.0; up to 1080P@60fps ·AVS-P16 (AVS+), up to 1080P@60fps ·H.263, up to 576P@60fps ·VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P@60fps ·Video Encoder ·Support video encoder for H.264, [email protected] ·H.264 maximum frame rate is up to 1920x1080@60fps ·Capable of encoding HEVC Main Profile @ L4.1 High-tier ·H.265 resolution and frame rate are up to 1920x1080 @60fps ·JPEG encoder included ·Video OUT ·Display Interface ·Support HD 2.0b output up to 4K 10bit @60Hz ·HD interface: 24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444) Max output resolution 4K for HD, 480i/576i for CVBS ·HD ·Compliant HD 2.0b ·Support YUV420 4k x 2k @ 60fps ·Support for 4k x 2k and 3D video formats ·Support for up to 10.2bps bandwidth ·Support HDR10 | |||||||||
Audio | Supports MP3, AAC, WMA, RM, FLAC | |||||||||
Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||||
Language | Multi-Language | |||||||||
Appliactions | ||||||||||
Online | Browse all video websites,support Netflix,Hulu,Youtube, etc. | |||||||||
Apps | Apps download freely form Google Play、Apkpure store etc. | |||||||||
Medium | Local Media playback,Support HDD, U Disck | |||||||||
Talk online | Support SKYPE ,MSN , facebook ,twitter ,QQ etc | |||||||||
Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard | |||||||||
Packing | ||||||||||
Product dimension: L96mm*W96mm*H20.6mm | ||||||||||
Unit products (G.W.): 122g | ||||||||||
Unit packing: | ||||||||||
Unit packing (G.W.): | ||||||||||
Export carton (WxHxL): | ||||||||||
Export carton (G.W.): | ||||||||||
Qty per export carton: | ||||||||||

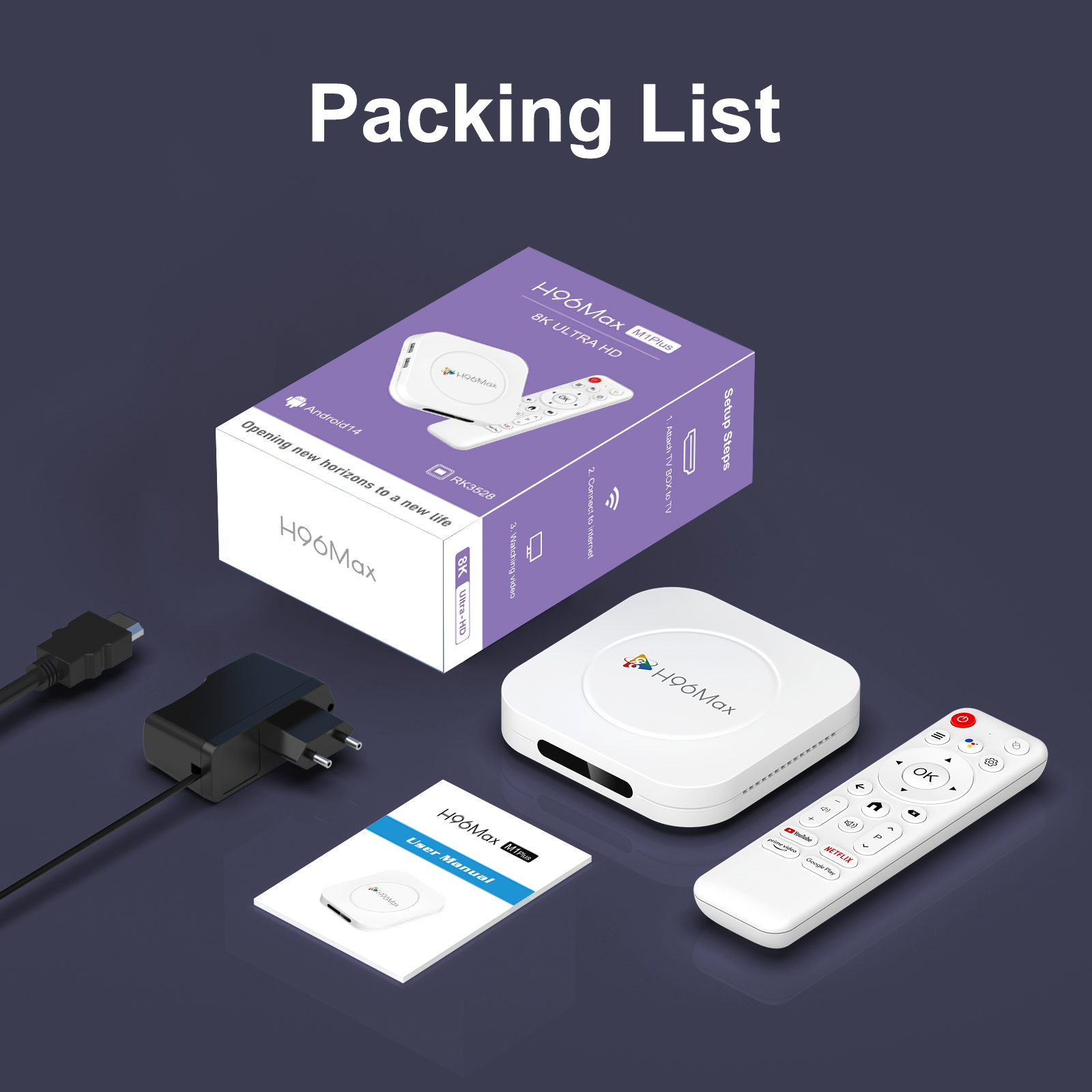

Accessories | ||||||||||
HD cable *1 | BT Remote *1 | User Manual *1 | Package box *1 | Power adapter *1 |
